Repair Procedures: Disassembly

WARNING: This page is about a different variant/trim than selected.

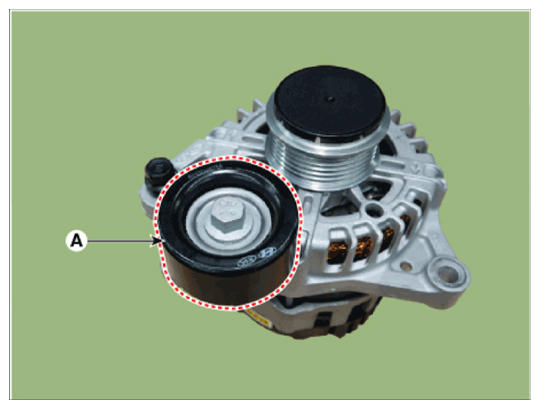

  1. Remove the idler (A).

    Tightening torque:

    39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb-ft)

    G14607342Courtesy of HYUNDAI MOTOR AMERICA

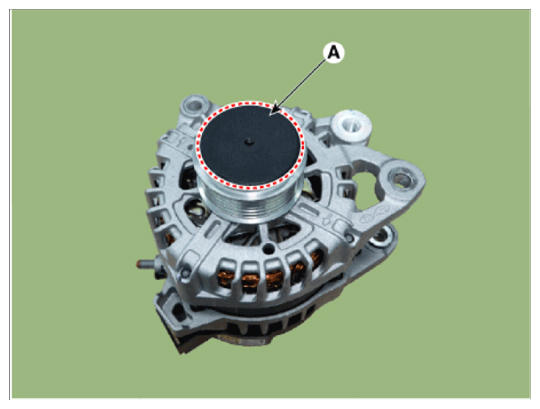

  2. Remove the OAP cap (A).
    G14607343Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When installing, replace with new OAP cap.

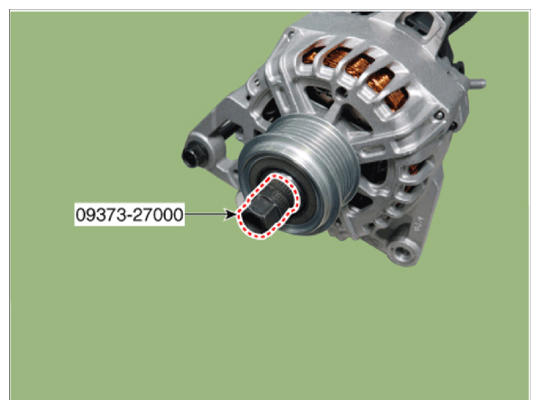

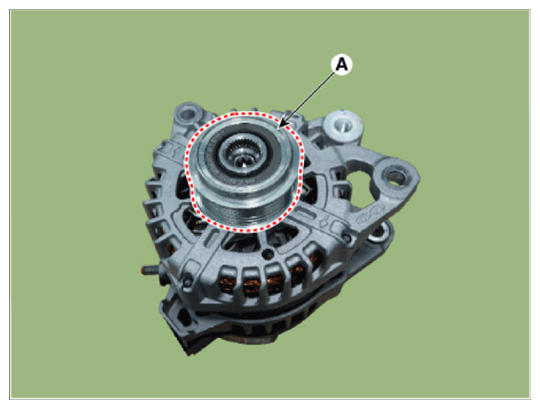

  3. Remove the OAP pulley (A) by using the SST (09373-27000).
    G14607344Courtesy of HYUNDAI MOTOR AMERICA
    G14607345Courtesy of HYUNDAI MOTOR AMERICA

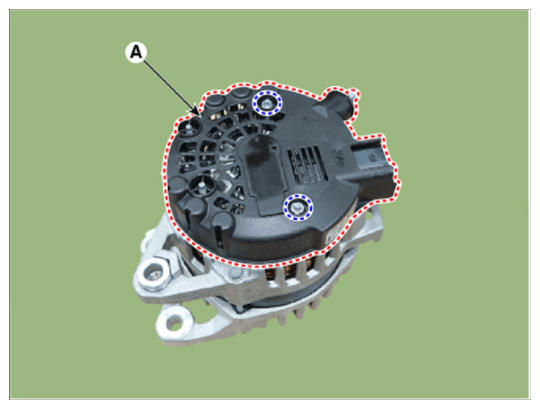

  4. Remove the alternator cover (A) after loosening the mounting nut.
    G14607346Courtesy of HYUNDAI MOTOR AMERICA

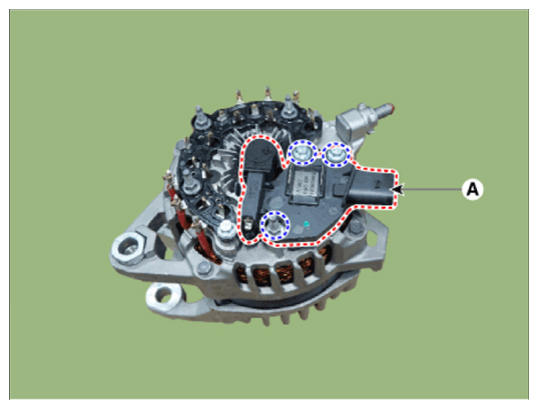

  5. Remove the regulator assembly (A).
    G14607347Courtesy of HYUNDAI MOTOR AMERICA

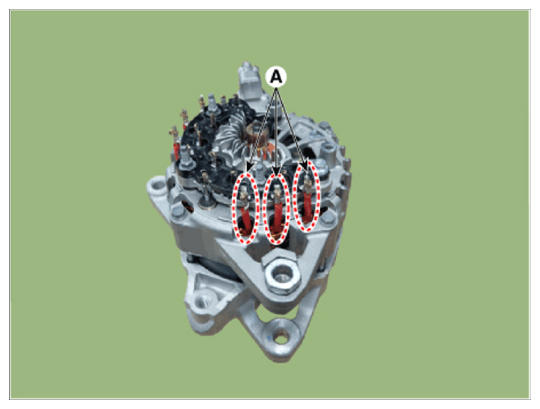

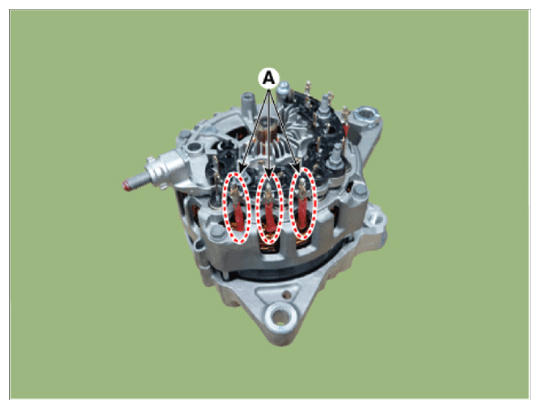

  6. Unsolder the stator leads (A).
    G14607348Courtesy of HYUNDAI MOTOR AMERICA
    G14607349Courtesy of HYUNDAI MOTOR AMERICA

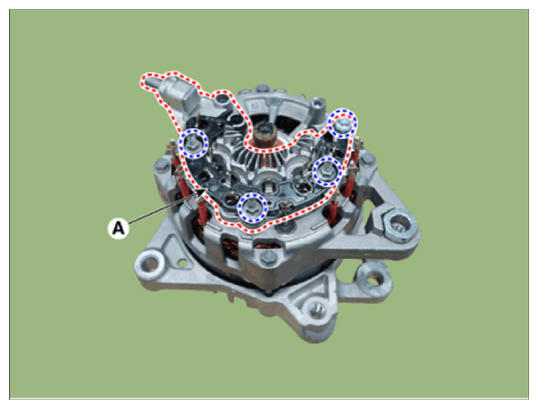

  7. Remove the rectifier assembly (A).
    G14607350Courtesy of HYUNDAI MOTOR AMERICA

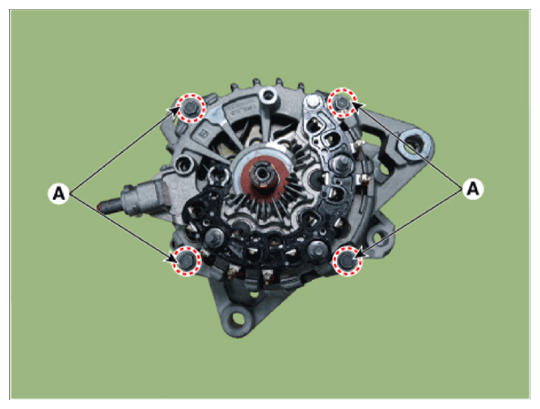

  8. Remove the 4 through bolts (A).
    G14607351Courtesy of HYUNDAI MOTOR AMERICA

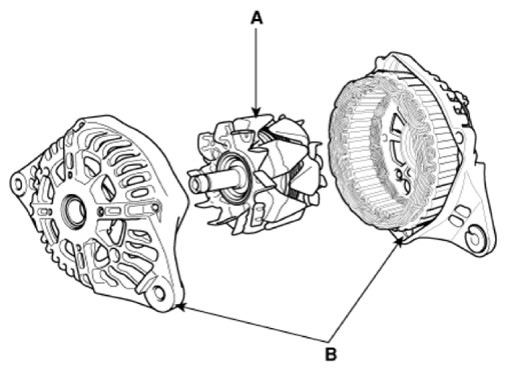

  9. Separate the rotor (A) and cover (B).
    G14607352Courtesy of HYUNDAI MOTOR AMERICA
  10. Install in the reverse order of removal.
