Removal and Installation
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative terminal.
- Remove the air duct and air cleaner assembly.
(Refer to Intake And Exhaust System - "AIR CLEANER ")

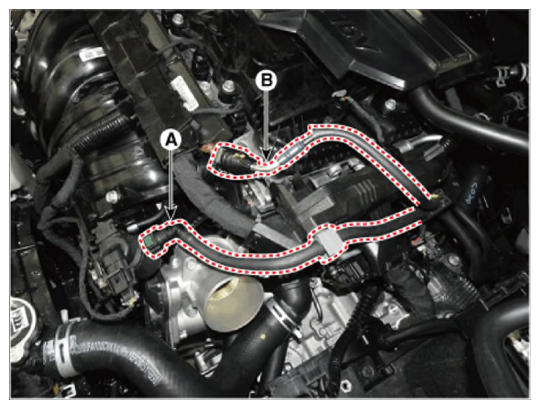

- Disconnect the purge control solenoid valve (PCSV) hose (A) and fuel hose (B).

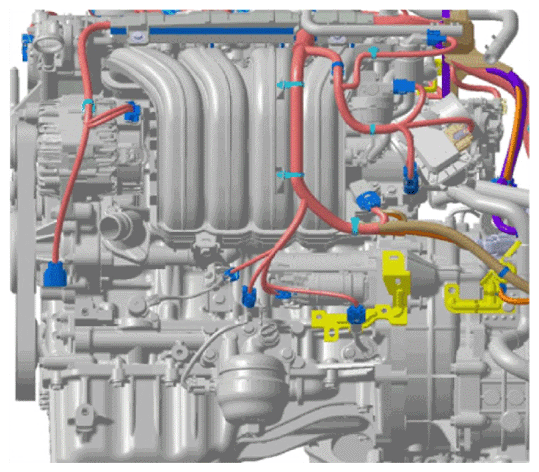

- Disconnect the wiring connectors and harness clamps, and then remove the wiring and protectors from the intake manifold.

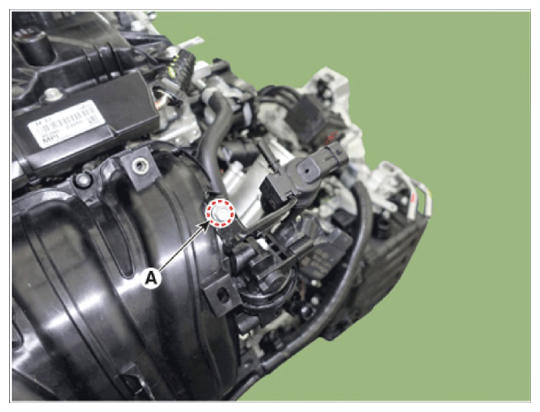

- Loosen the PCSV mounting bolt (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

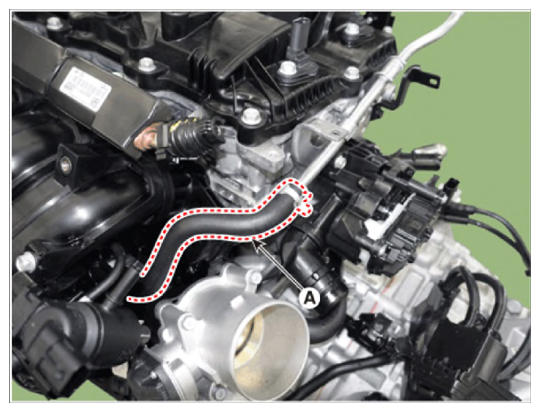

- Disconnect the vacuum hose (A).

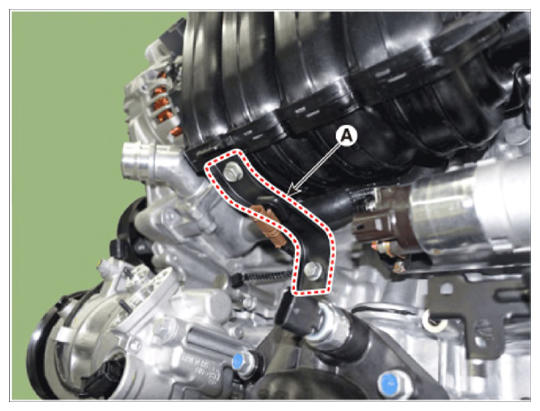

- Remove the intake manifold stay bracket (A).
Tightening torque:
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

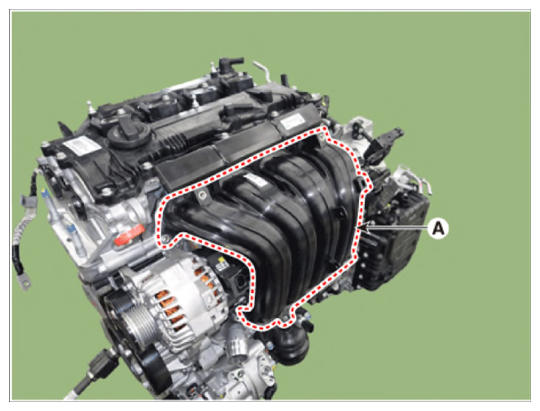

- Remove the intake manifold (A).
Tightening torque:
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)
NOTE:- When installing, replace with new gaskets.

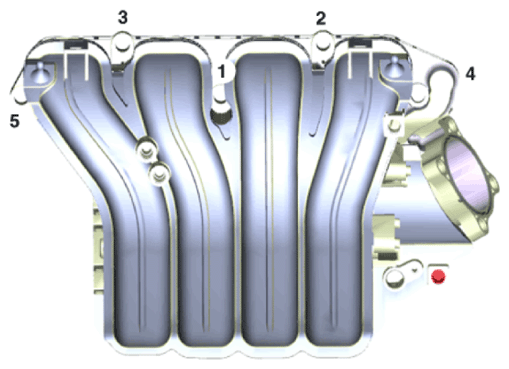

- When installing the intake manifold, tighten the bolts and nuts with pre-torque first, and then tighten the bolts and nuts with specified torque in the sequence shown.
