Components & Components Location: Components

WARNING: This page is about a different variant/trim than selected.

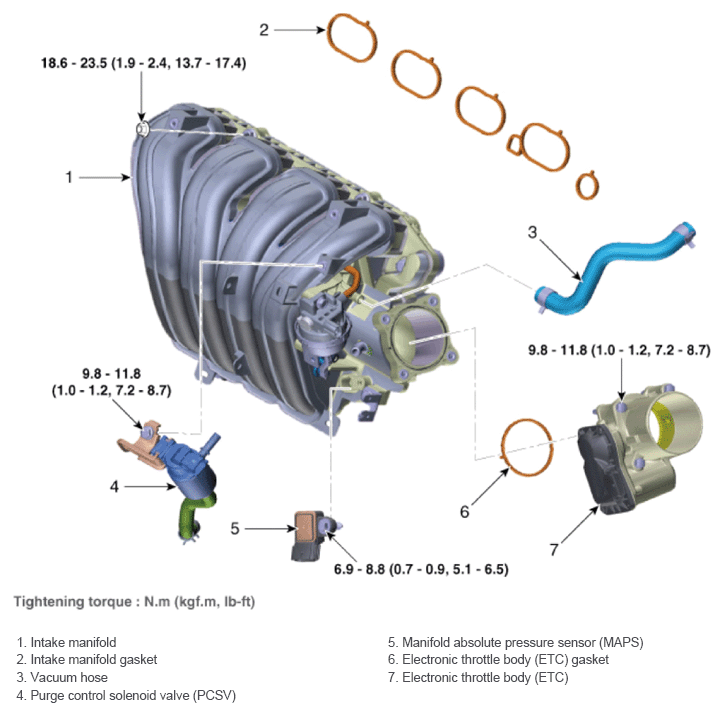

Fig 1: Intake Manifold Components Location With Torque Specification
G14607276Courtesy of HYUNDAI MOTOR AMERICA
