Air Cleaner Element Replacement

WARNING: This page is about a different variant/trim than selected.

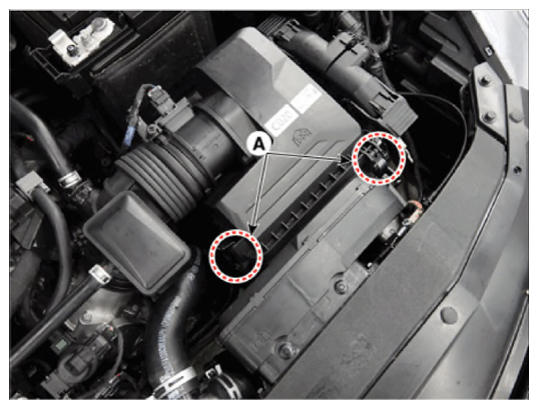

  1. Open the air cleaner cover by unhooking the clamps (A).
    G14607274Courtesy of HYUNDAI MOTOR AMERICA

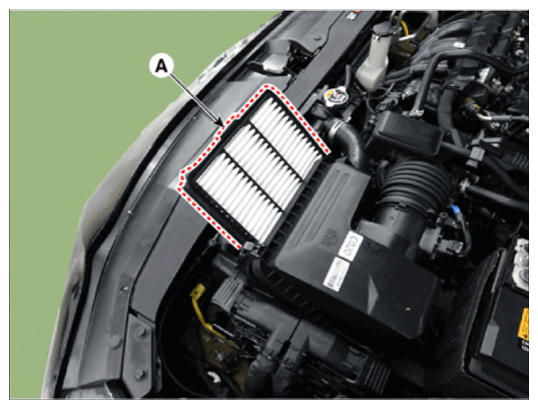

  2. Replace the air cleaner element (A) with a new one.
    G14607275Courtesy of HYUNDAI MOTOR AMERICA
  3. Close the air cleaner cover by hooking the clamps.
