Air Cleaner Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine cover.

    (Refer to Engine And Transaxle Assembly - "ENGINE COVER ")

  2. Disconnect the battery negative terminal.
  3. Remove the air cleaner assembly.

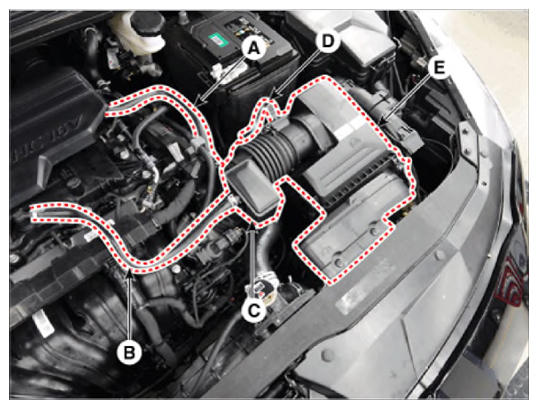

    1. Disconnect the breather hose #1 (A).
    2. Disconnect the breather hose #2 (B).
    3. Disconnect the air intake hose (C).
    4. Disconnect the connector (D).
    5. Remove the air cleaner assembly & air duct (E).
      G14607273Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
