Removal and Installation

WARNING: This page is about a different variant/trim than selected.

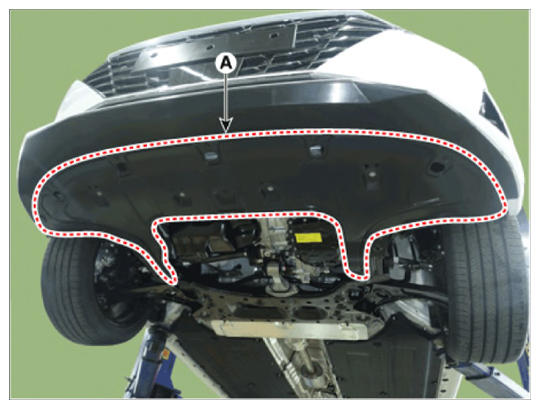

  1. Remove the engine room under cover (A).

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

    G14607035Courtesy of HYUNDAI MOTOR AMERICA
  2. Installation is reverse order of removal.
