Removal and Installation

WARNING: This page is about a different variant/trim than selected.

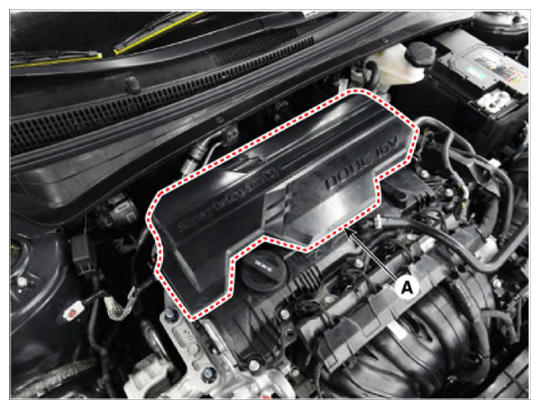

  1. Remove the engine cover (A).
    G14607034Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Lift up the lower end of engine cover, then left and right alternately.
    • When installing, confirm that the mounting rubber insulators has been installed.
    • allowed the engine to warm up to 80~95 temperature and stop engine
  2. Install in the reverse order of removal.
