Monitor Current Data

WARNING: This page is about a different variant/trim than selected.
  1. Ignition "OFF"
  2. Connect GDS to Data Link Connector (DLC).
  3. Engine "ON".
  4. Warm up the engine to normal operating temperature.

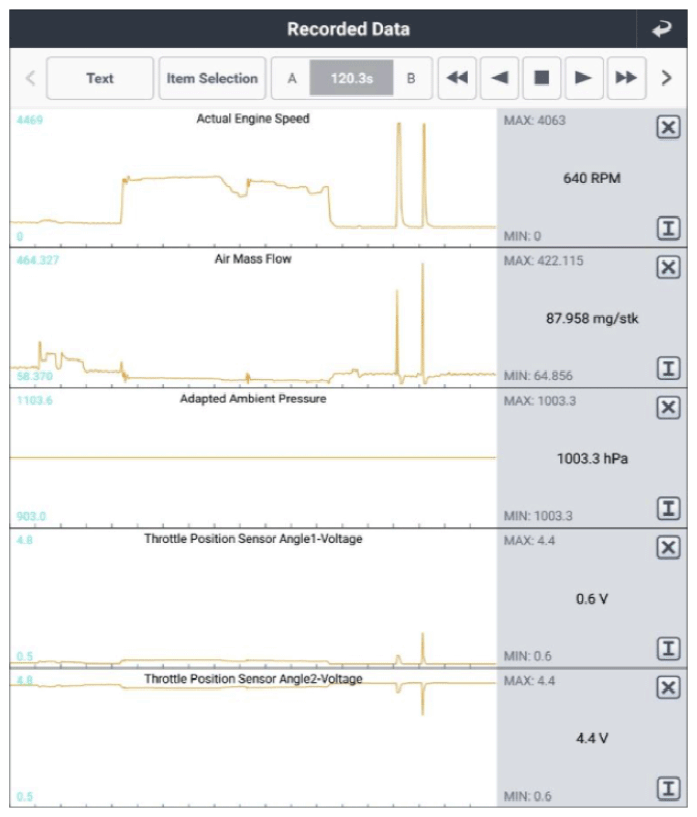

  5. Monitor following parameters in "Current Data" with GDS.
    G14610142Courtesy of HYUNDAI MOTOR AMERICA
