Section 37 (Engine Control System Diagnosis - 2.0L (Except HEV) (6 Of 6))
>>
DTC P2270-00: O2 Sensor Signal Stuck Lean (Bank 1 Sensor 2)
>>
Troubleshooting
>>
Diagnostic Flowchart
Diagnostic Flowchart
WARNING:
This page is about a different variant/trim than selected.

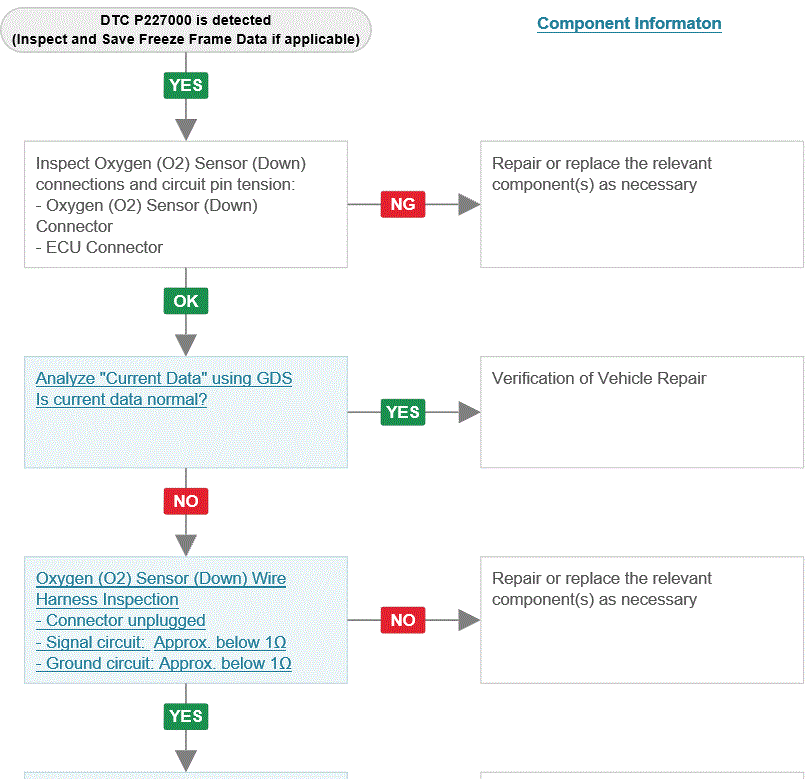

Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA

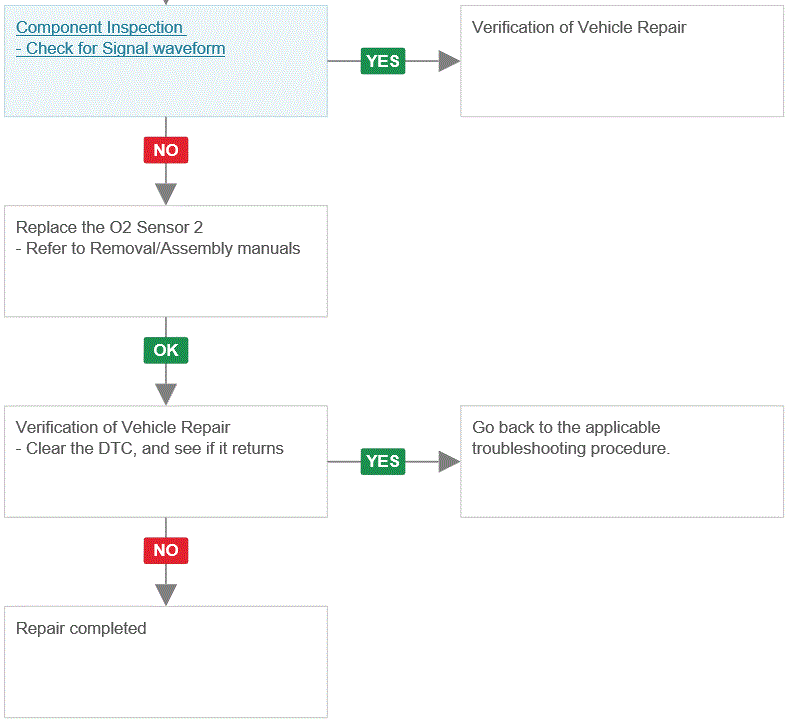

Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
