Section 37 (Engine Control System Diagnosis - 2.0L (Except HEV) (6 Of 6))
>>
DTC P219F-00: Cylinder 4 Air-Fuel Ratio Imbalance
>>
Troubleshooting
>>

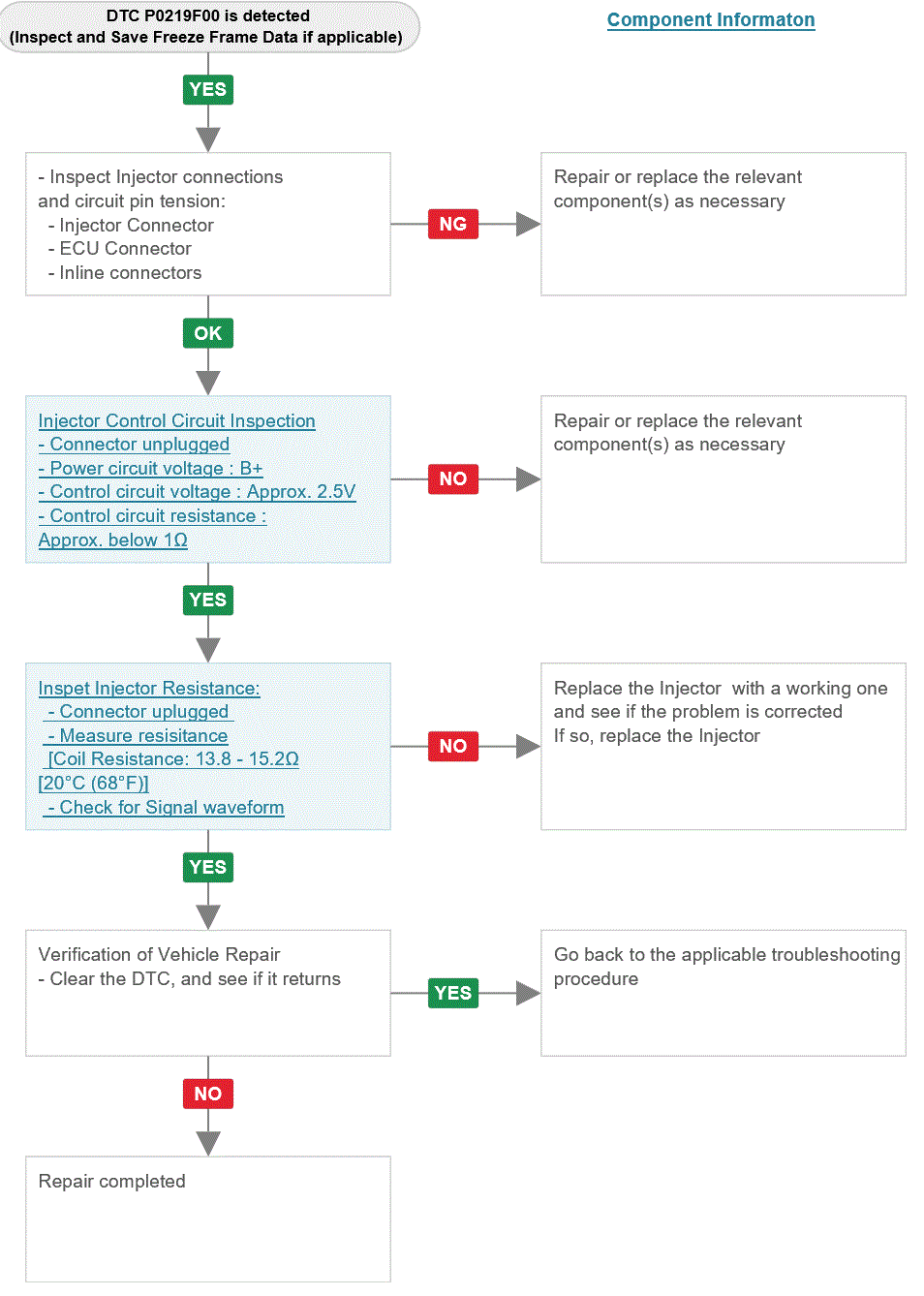

Diagnostic Flowchart
Diagnostic Flowchart
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
