Monitor Current Data

WARNING: This page is about a different variant/trim than selected.
  1. Ignition "OFF"
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition "ON".
  4. Monitor "Brake Boost Vacuum Pressure Voltage (ISG)" and "Brake Boost Vacuum Pressure (ISG)" parameter in "Current Data" with GDS.
  5. Test Condition: brake switch "OFF" and brake switch "ON".

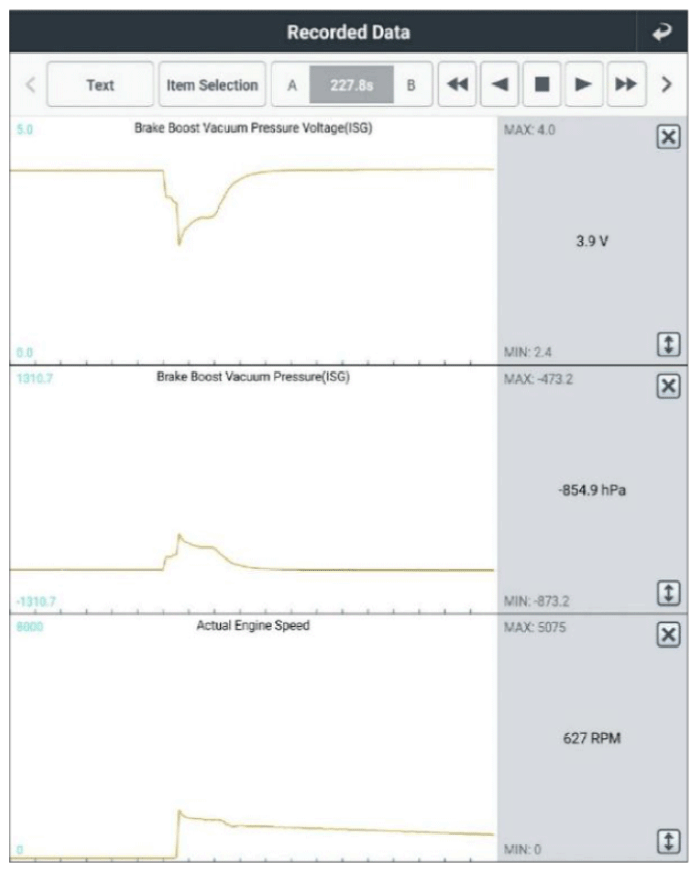

    Specification:  Refer to Figure below

    G14609996Courtesy of HYUNDAI MOTOR AMERICA
