Monitor Current Data

WARNING: This page is about a different variant/trim than selected.
  1. Ignition "OFF"
  2. Connect GDS to Data Link Connector (DLC).
  3. Engine "ON".
  4. Monitor "A/C Pressure" and "A/C Pressure Voltage" parameter in "Current Data" with GDS.
  5. Test Condition: A/C "OFF" and A/C "ON"

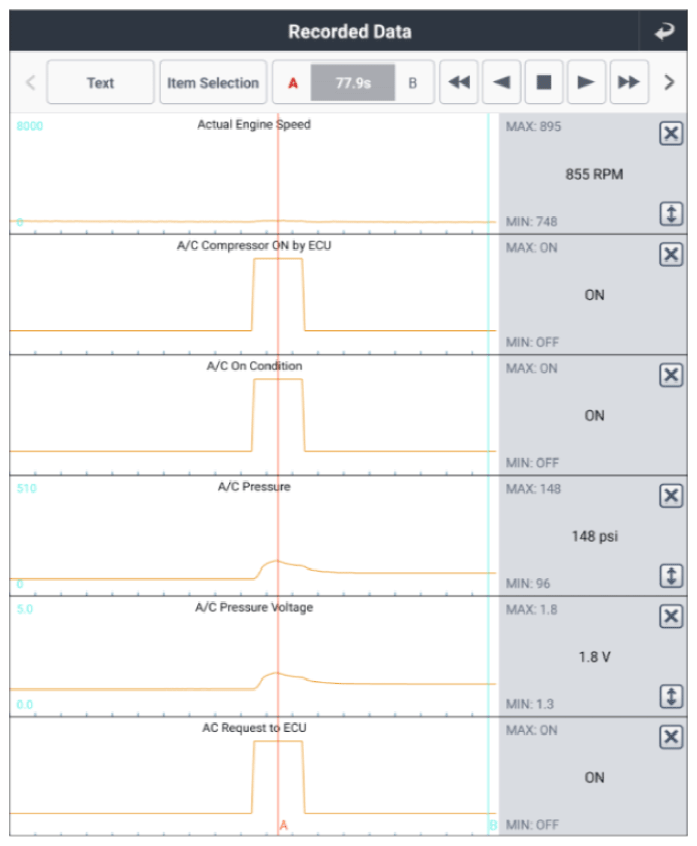

    Specification:  Refer to Figure below

    G14609992Courtesy of HYUNDAI MOTOR AMERICA
