Diagnostic Flowchart

WARNING: This page is about a different variant/trim than selected.

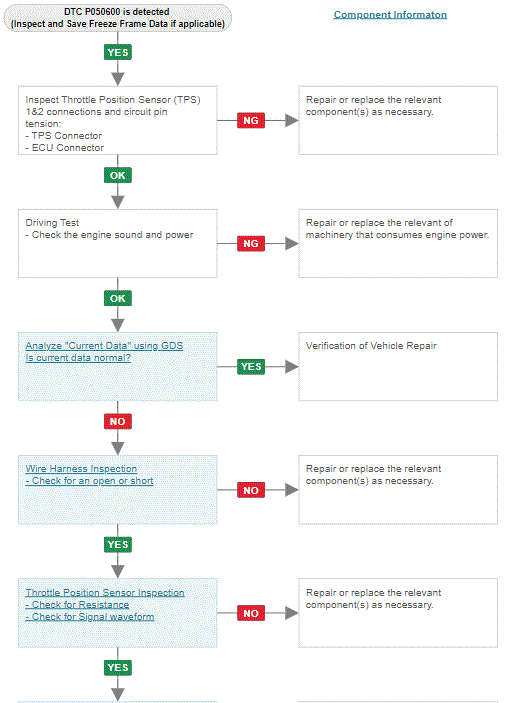

Fig 1: 1 Of 2

Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: 2 Of 2

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Replace the throttle body assembly or Engine Control Module (PCM). Then initialize the throttle position and perform the learning process again. Clear the previous TPS learnt value with the GDS.
