Monitor Canister Purge Valve

WARNING: This page is about a different variant/trim than selected.
  1. Connect GDS to Data Link Connector (DLC).
  2. Engine "OFF".
  3. Monitor current data of "Purge Control Valve" with GDS.

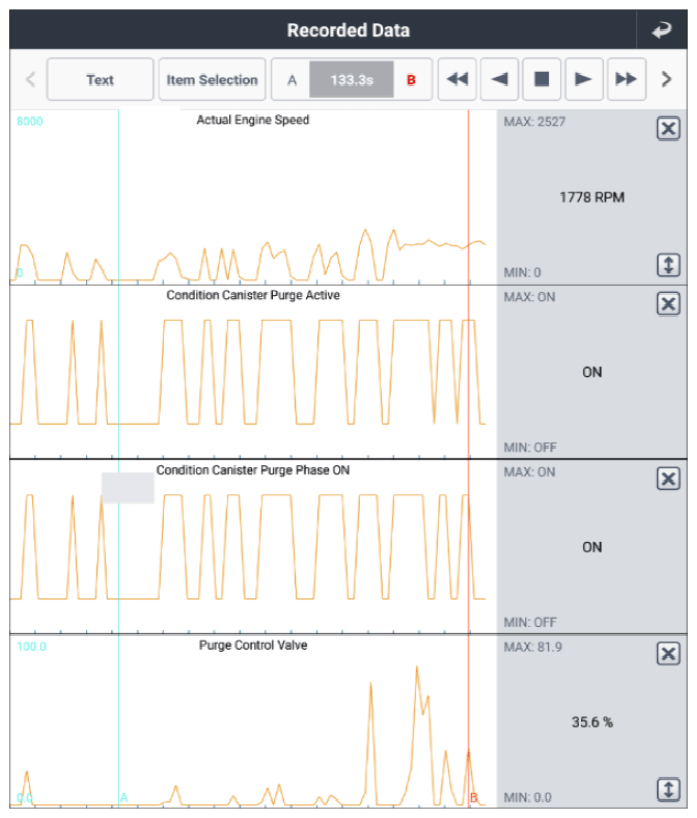

    Specification:  Refer to Figure below

    G14609970Courtesy of HYUNDAI MOTOR AMERICA
