Section 35 (Engine Control System Diagnosis - 2.0L (Except HEV) (4 Of 6))
>>
DTC P0453-00: Evaporative Emission System-Pressure Sensor High Input
>>
Troubleshooting
>>

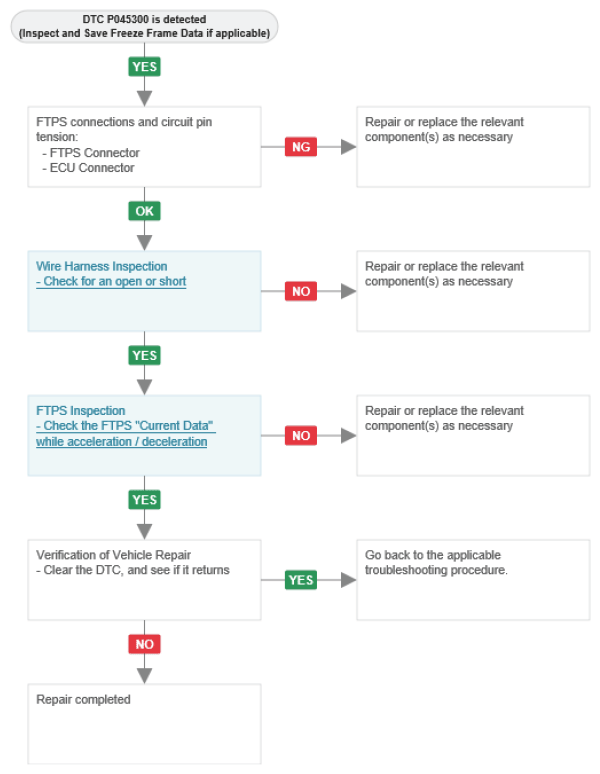

Diagnostic Flowchart
Diagnostic Flowchart
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
