Monitor Current Data

WARNING: This page is about a different variant/trim than selected.
  1. Ignition "OFF"
  2. Connect GDS to Data Link Connector (DLC).
  3. Engine "ON".
  4. Warm up the engine to normal operating temperature.
  5. Monitor following parameters in "Current Data" with GDS.

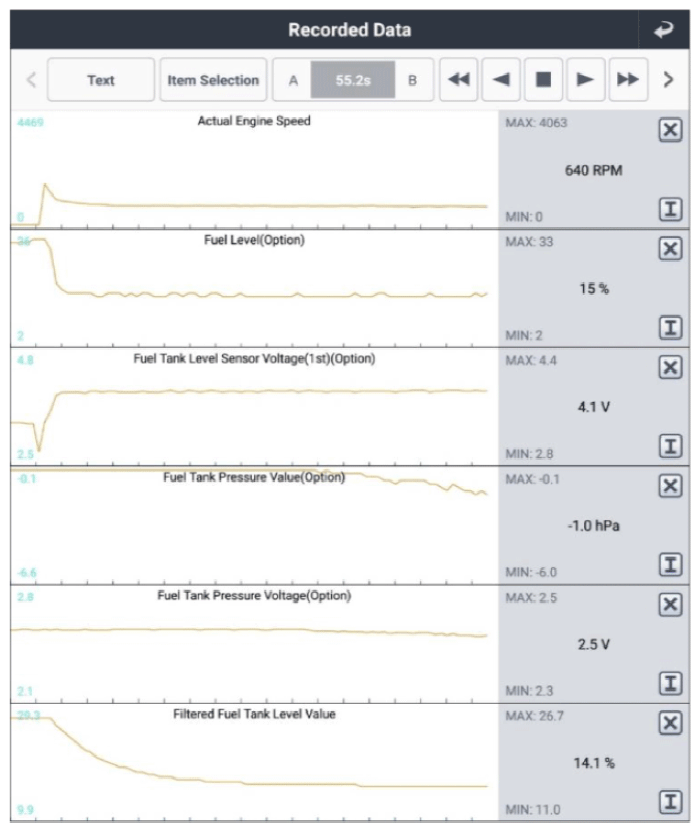

    Specification  : Refer to Figure below

G14609945Courtesy of HYUNDAI MOTOR AMERICA
