Section 34 (Engine Control System Diagnosis - 2.0L (Except HEV) (3 Of 6))
>>
DTC P0341-00: Camshaft Position Sensor 'A'(Intake) Circuit Range/Performance (Bank 1)
>>
Troubleshooting
>>
Diagnostic Flowchart
Diagnostic Flowchart
WARNING:
This page is about a different variant/trim than selected.

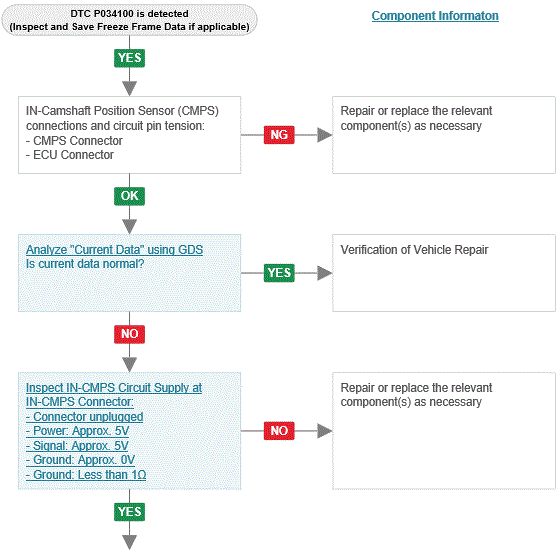

Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
