Current Data Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Ignition "OFF".
  2. Connect GDS to Data Link Connector (DLC).
  3. Engine "ON".
  4. Monitor following parameters in "Current Data" with GDS.

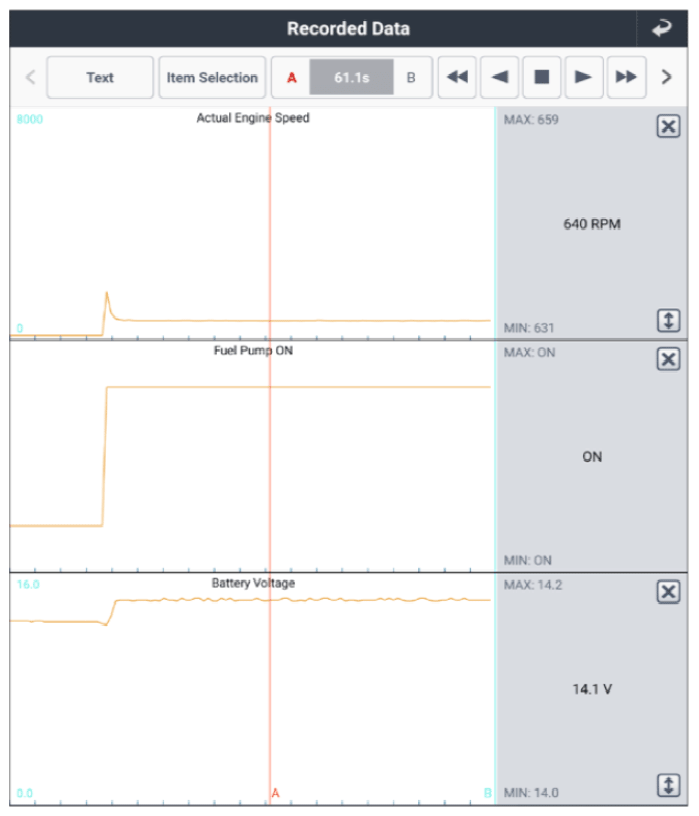

    Specification  : Refer to Figure below

G14609878Courtesy of HYUNDAI MOTOR AMERICA
