Current Data Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Ignition "OFF"
  2. Connect GDS to Data Link Connector (DLC).
  3. Engine "ON".
  4. Monitor following parameters in "Current Data" with GDS.

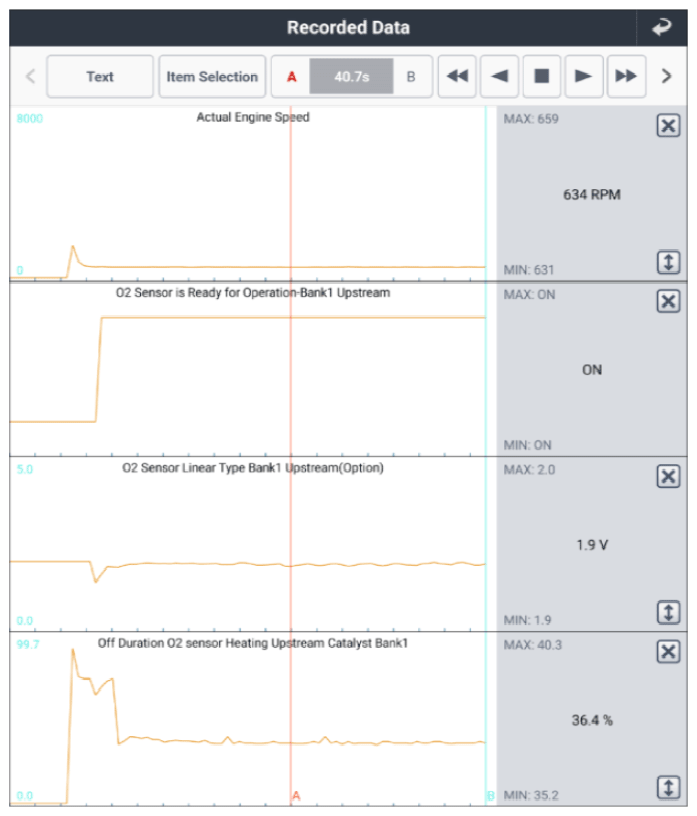

    Specification:  Refer to Figure below

    G14609857Courtesy of HYUNDAI MOTOR AMERICA
