Section 33 (Engine Control System Diagnosis - 2.0L (Except HEV) (2 Of 6))
>>
DTC P016C-00: Closed Loop Air/Fuel Ratio Control At Limit-System Too Lean
>>
Troubleshooting
>>
Diagnostic Flowchart
Diagnostic Flowchart
WARNING:
This page is about a different variant/trim than selected.

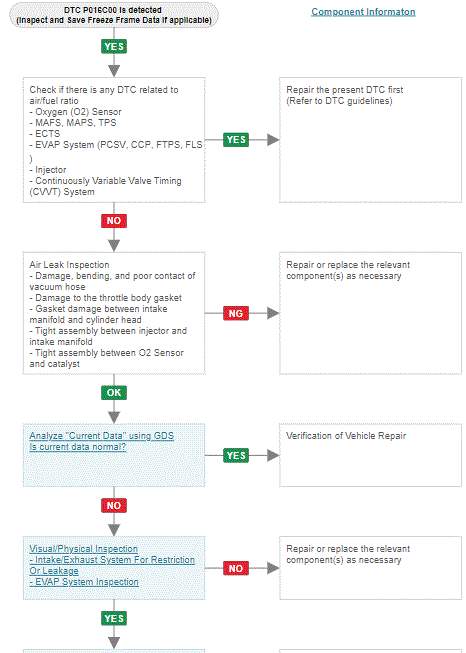

Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA

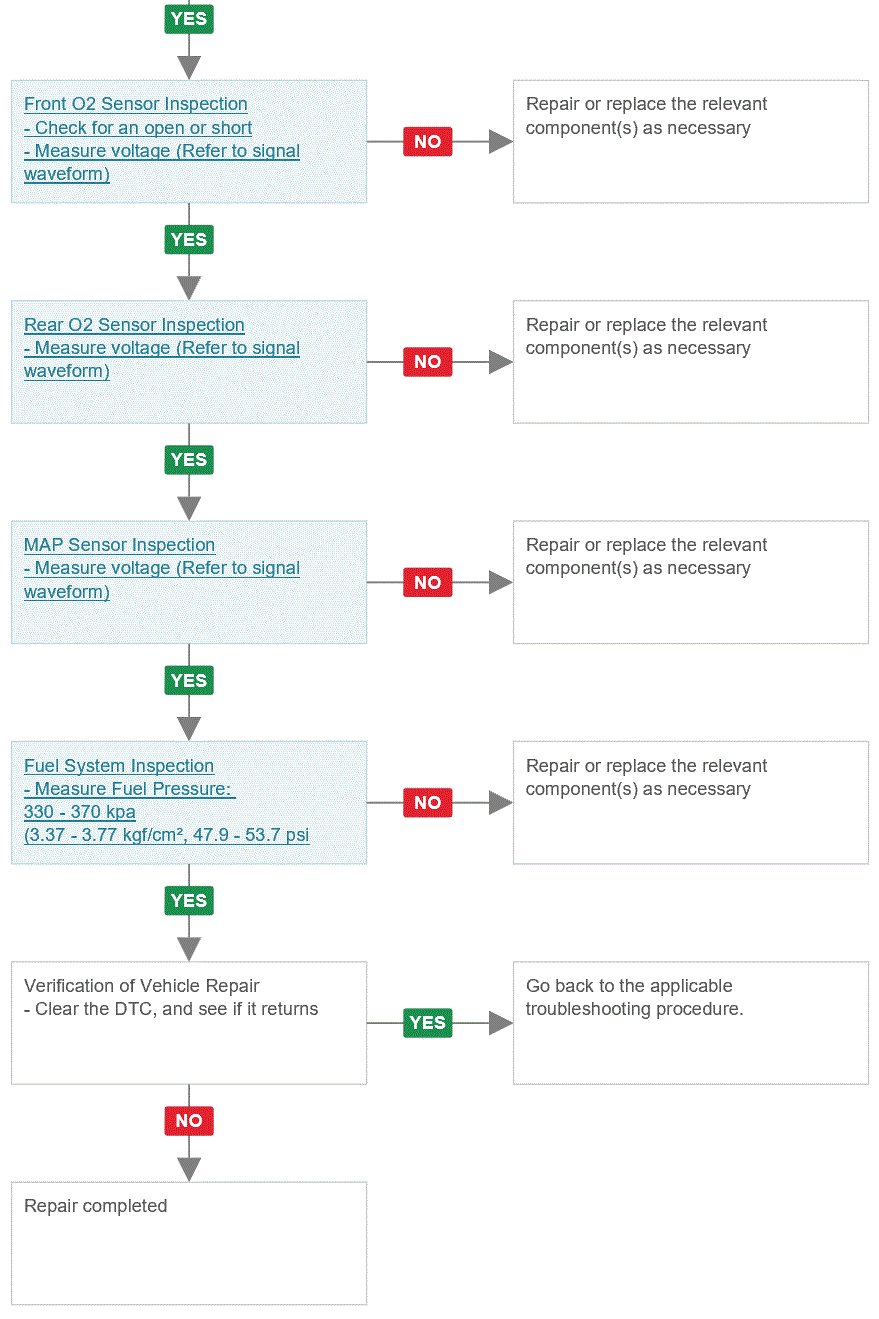

Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
