Section 33 (Engine Control System Diagnosis - 2.0L (Except HEV) (2 Of 6))
>>
DTC P0134-00: O2 Sensor Circuit No Activity Detected (Bank 1 Sensor 1)
>>
Troubleshooting
>>

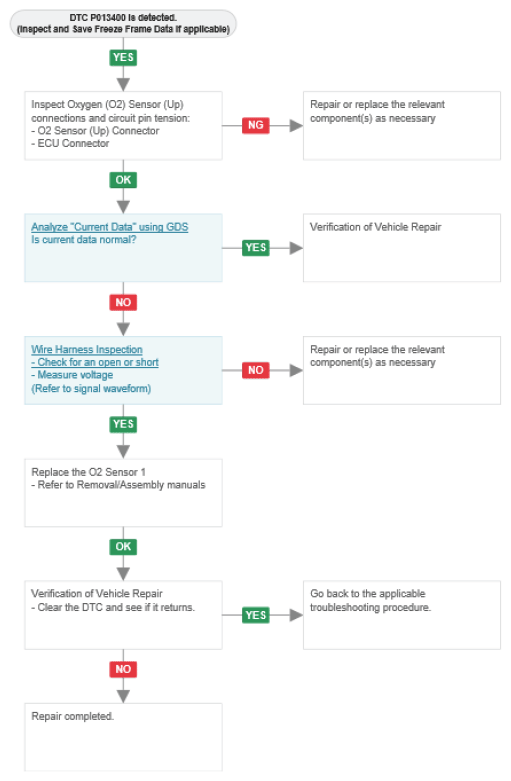

Diagnostic Flowchart
Diagnostic Flowchart
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
