Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:

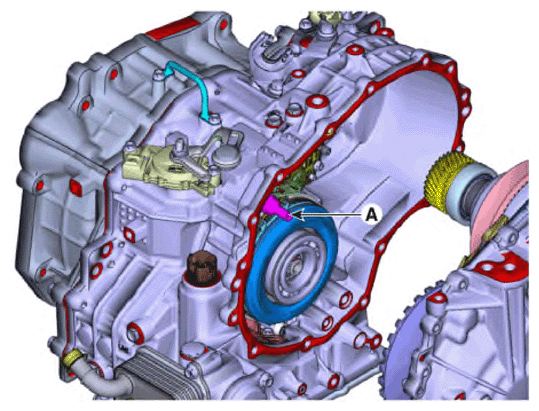

- Before mounting, replace the parking rod cam if there are excessive flaws on the outside of the parking rod cam (A).
(Refer to IVT Control System - "PARKING ROD CAM ")
- Make sure that there is an O-ring on the side of the case.
- Remove the old sealant from the mounting surface and apply a new sealant.
- To install reverse the removal procedures.
- Injection the IVT fluid.
(Refer to Hydraulic System - "FLUID ")
