Components and Components Location

WARNING: This page is about a different variant/trim than selected.

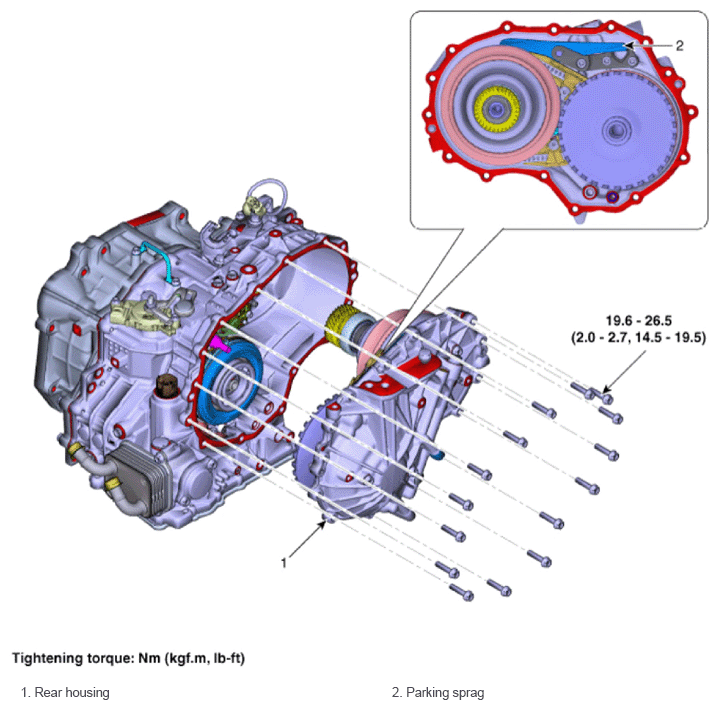

Fig 1: Parking Sprag Components Location With Torque Specification
G14607836Courtesy of HYUNDAI MOTOR AMERICA
