Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the under cover.
(Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
- Drain the coolant.
(Refer to Engine Mechanical System - "COOLANT ")

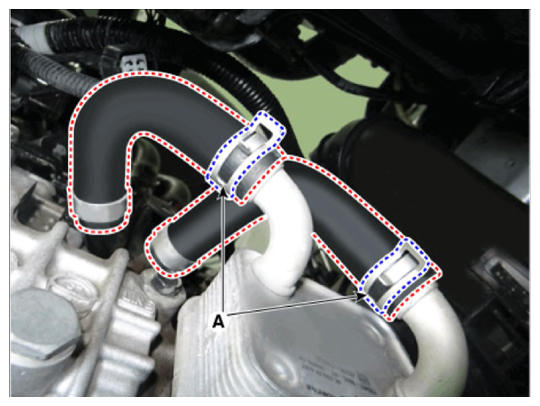

- Separate the coolant hoses (A) from the IVTF warmer.

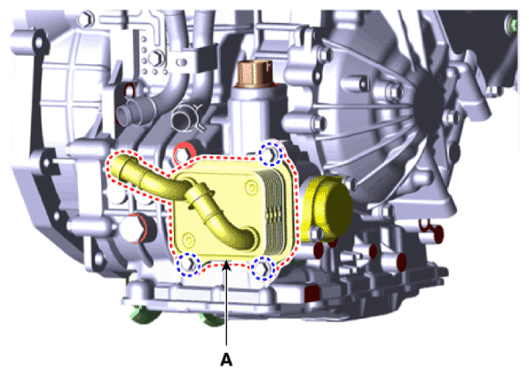

- Loosen the bolts and then removing the IVTF warmer (A).
Tightenning torque:
19.6 - 26.5 N.m (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb-ft)
