Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.

NOTE:

As the mileage increases, the colors of IVTF and ATF become darker and more difficult to distinguish.
Be sure to use the genuine IVTF (SP-IVT1).
When replacing with non-genuine IVTF, bad shift and vibration may occur, causing damage to the IVT.
Non-genuine IVT fluid includes aftermarket IVT fluid indicated as interchangeable with genuine Hyundai fluid.

NEW OIL

IVTF (for IVT)	ATF (for AT)
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

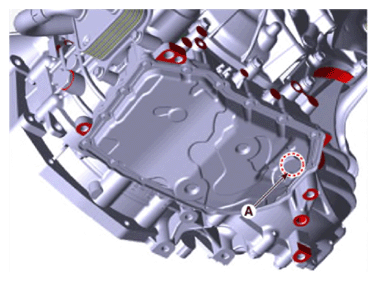

Remove the IVTF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.

Tightening torque:

34.3 - 44.1 N.m (3.5 - 4.5 kgf.m, 25.3 - 32.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Do not resuse gasket (A).

Courtesy of HYUNDAI MOTOR AMERICA

Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

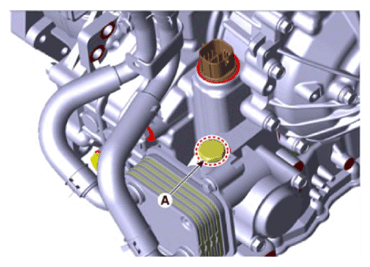

Remove the IVTF injection plug (A).

Courtesy of HYUNDAI MOTOR AMERICA
Fill the Intelligent Variable Transmission (IVT) with about 6.5 liters of SP-IVT1 through the IVTF filler hole.
Perform the IVTF level check procedure.
(Refer to Fluid - "INSPECTION ")
