Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery (-) terminal.
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Remove the rear seat.
(Refer to Body (Interior and Exterior) - "REAR SEAT ASSEMBLY ")

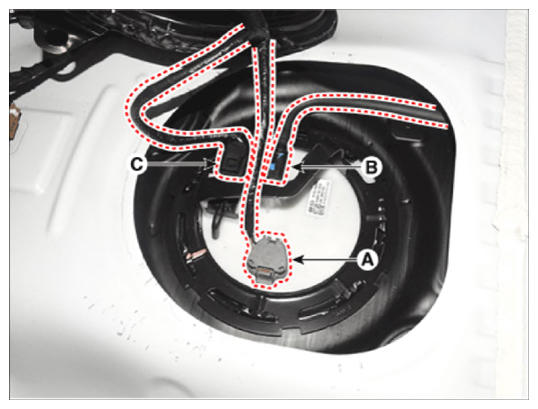

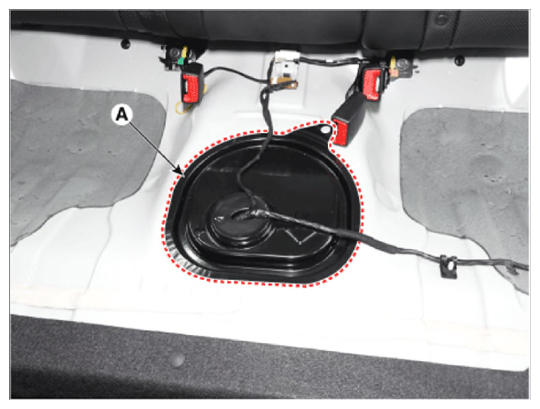

- Remove the fuel pump service cover (A).
- Disconnect the fuel pump connector (A).
- Disconnect the fuel feed tube quick-connector (B).
- Disconnect the fuel tank pressure sensor connector (C).
- Lift the vehicle.

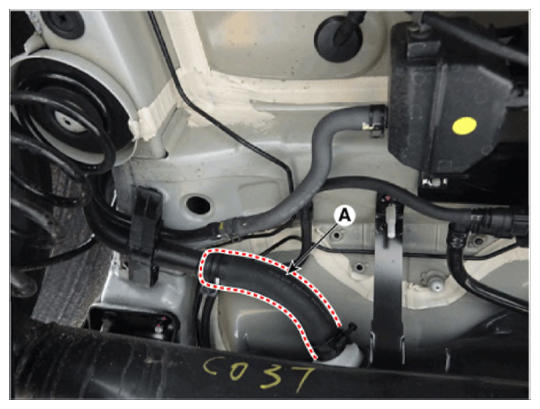

- Separate the fuel filler hose (A).

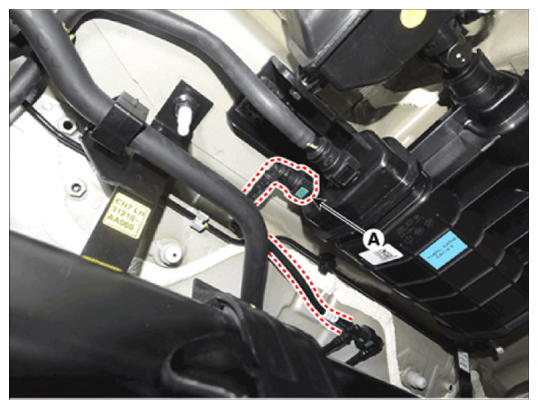

- Disconnect the vapor hose quick-connector (A).

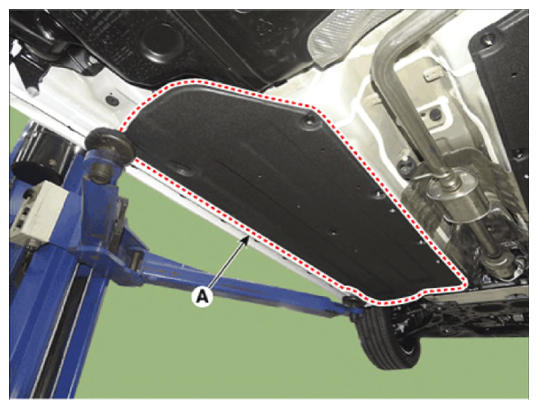

- Remove the floor under cover (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

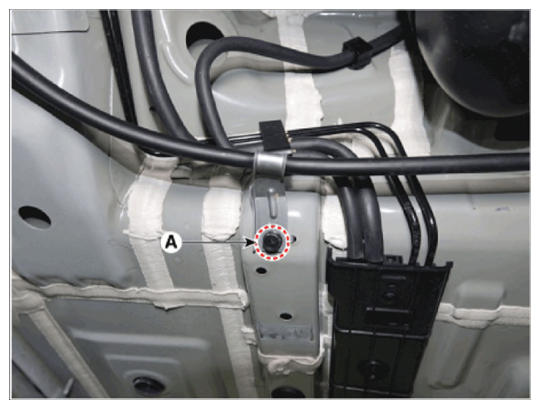

- Separate the brake line after removing the bracket mounting bolt (A).
Tightening torque:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

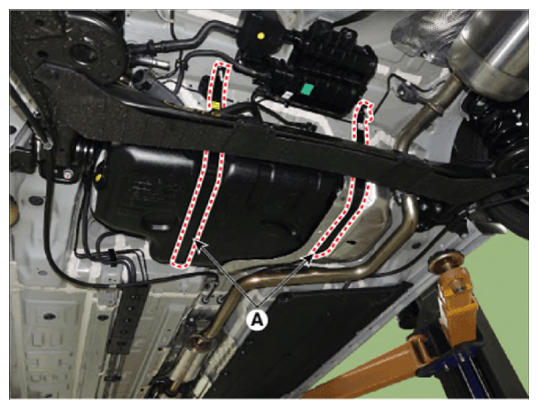

- Remove the fuel tank band (A).
Tightening torque:
39.2 - 54.0 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

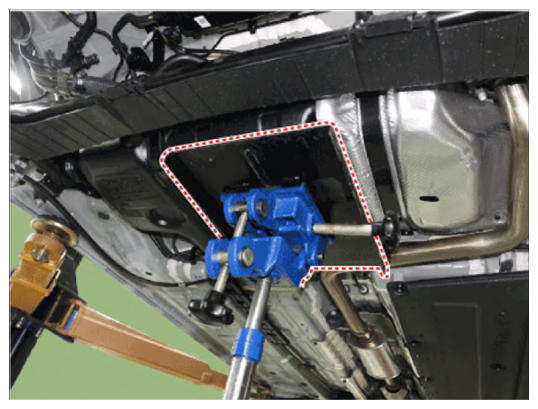

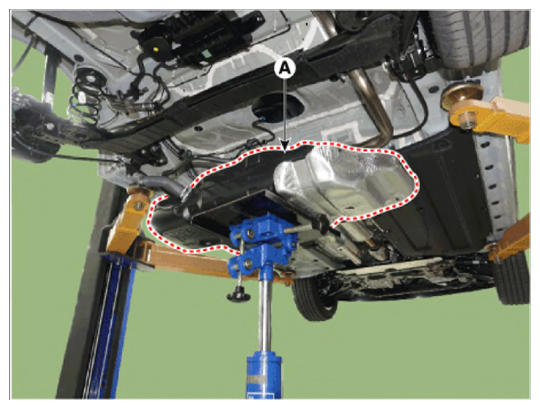

- Remove the fuel tank (A).
