Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

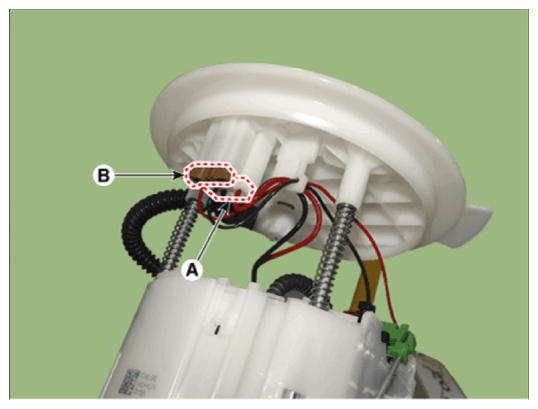

  2. Disconnect the fuel pump motor connector (A) and fuel sender connector (B).
    G14607699Courtesy of HYUNDAI MOTOR AMERICA

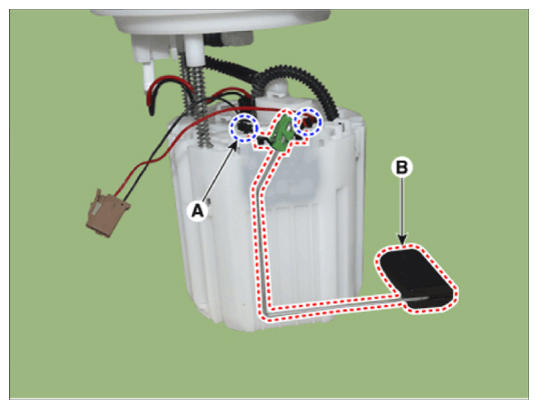

  3. Release the fixing hook (A) and then remove the fuel sender (B).
    G14607700Courtesy of HYUNDAI MOTOR AMERICA
