Fuel Sender
WARNING: This page is about a different variant/trim than selected.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the fuel pump assembly.

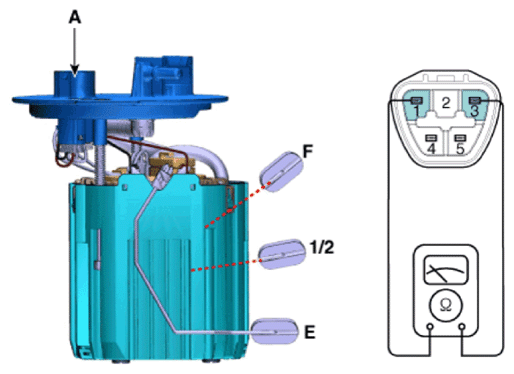

- Using an ohmmeter, measure the resistance between terminals 1 and 3 of sender connector (A) at each float level.
Pin No Description 1 Fuel sender ground 2 - 3 Fuel sender signal 4 Fuel pump (+) 5 Fuel pump (-) - Also check that the resistance changes smoothly when the float is moved from "E" to "F".
Position Resistance (Ω) Capacity (l ) E 297 - 305 2 1/2 77.4 - 81.4 25 F 14 - 16 46.1
