Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

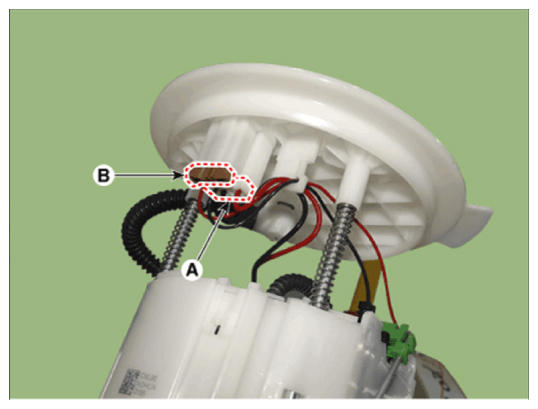

  2. Disconnect the fuel pump motor connector (A) and fuel sender connector (B).
    G14607689Courtesy of HYUNDAI MOTOR AMERICA

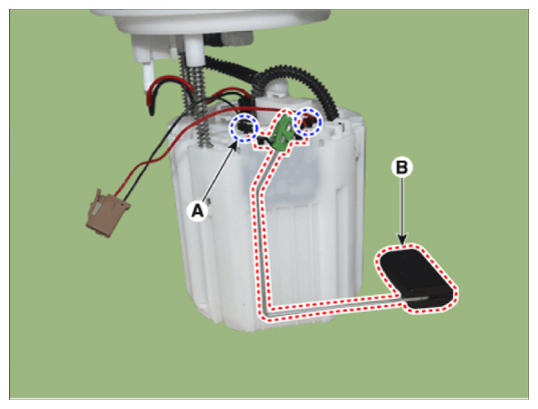

  3. Release the fixing hook (A) and then remove the fuel sender (B).
    G14607690Courtesy of HYUNDAI MOTOR AMERICA

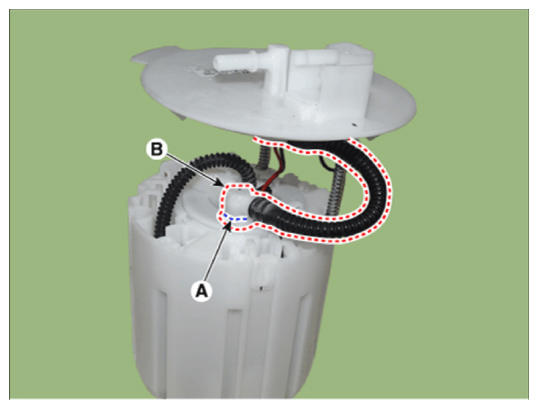

  4. Remove the fixing clip (A) and then disconnect the fuel feed tube (B).
    G14607691Courtesy of HYUNDAI MOTOR AMERICA

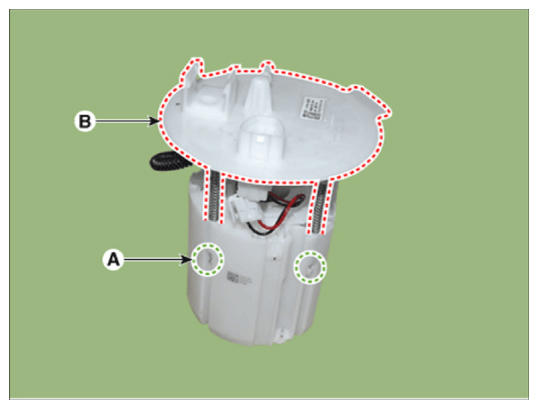

  5. Remove the fixing clip (A) and then remove the head assembly (B).
    G14607692Courtesy of HYUNDAI MOTOR AMERICA

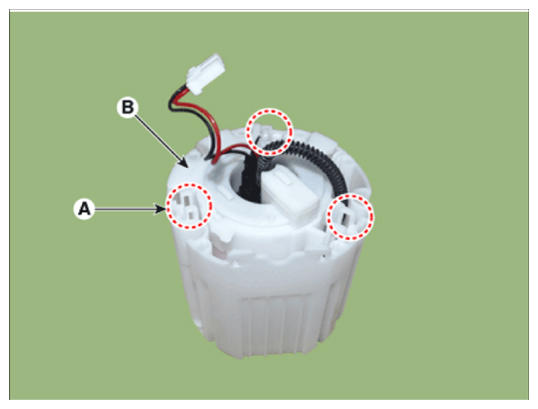

  6. Release the fixing hook (A) and then remove the reservoir-cup (B).
    G14607693Courtesy of HYUNDAI MOTOR AMERICA

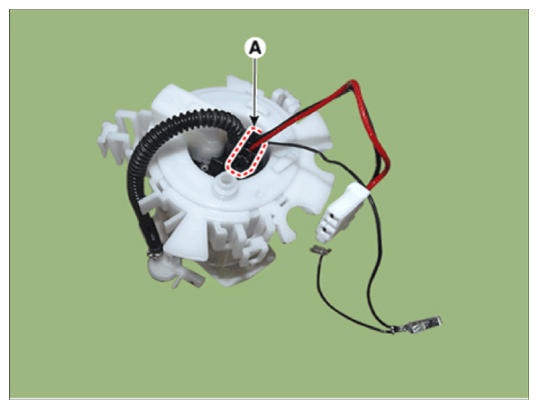

  7. Disconnect the fuel pump motor connector (A).
    G14607694Courtesy of HYUNDAI MOTOR AMERICA

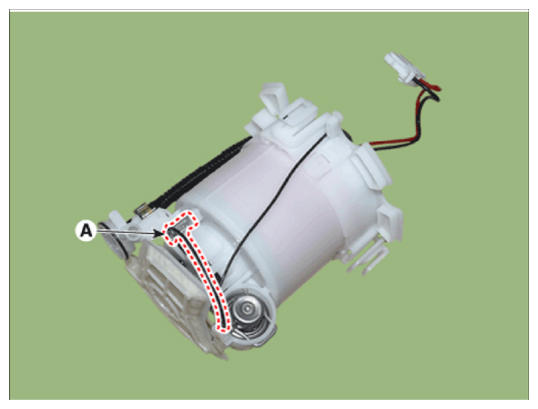

  8. Disconnect the ground cable (A).
    G14607695Courtesy of HYUNDAI MOTOR AMERICA

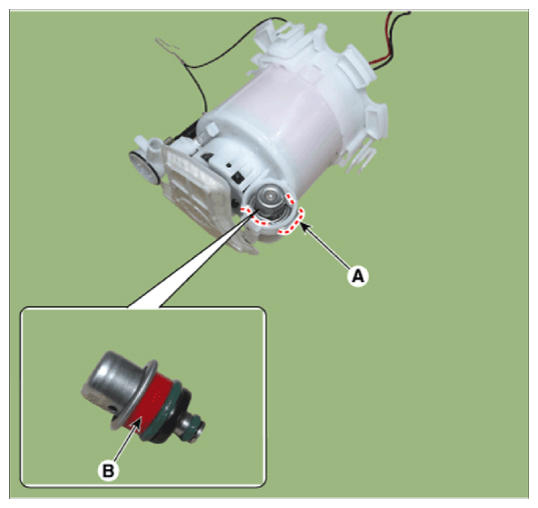

  9. Remove the fixing clip (A) and then disconnect the fuel pressure regulator (B).
    G14607696Courtesy of HYUNDAI MOTOR AMERICA

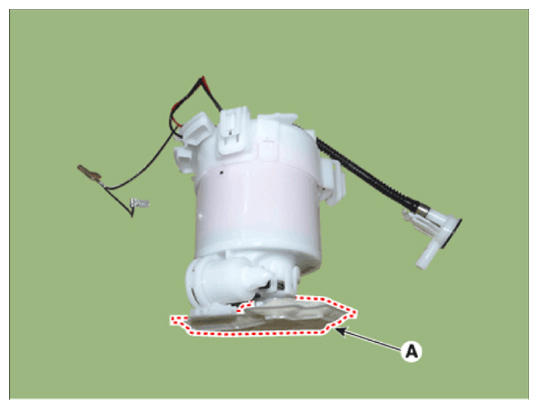

  10. Release the fixing hook and then remove the free filter (A).
    G14607697Courtesy of HYUNDAI MOTOR AMERICA

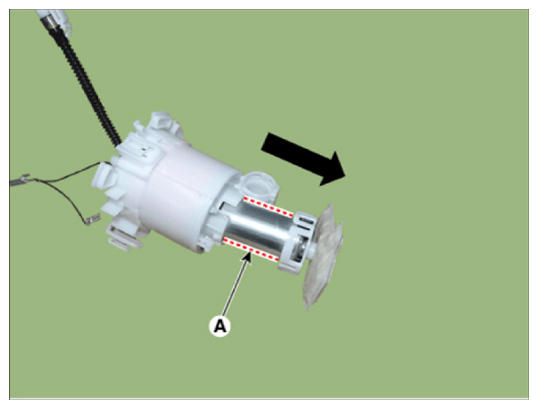

  11. Remove the fuel pump motor (A) from the fuel filter.
    G14607698Courtesy of HYUNDAI MOTOR AMERICA
