Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

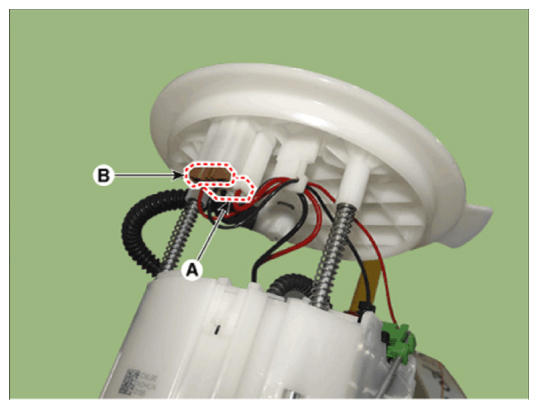

  2. Disconnect the fuel pump motor connector (A) and fuel sender connector (B).
    G14607701Courtesy of HYUNDAI MOTOR AMERICA

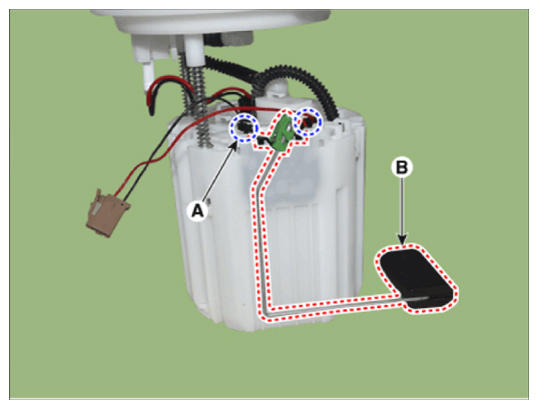

  3. Release the fixing hook (A) and then remove the fuel sender (B).
    G14607702Courtesy of HYUNDAI MOTOR AMERICA

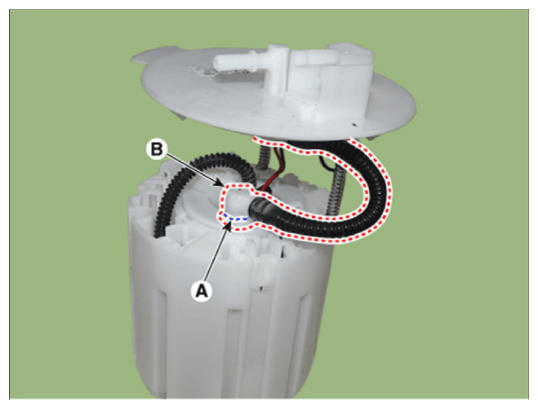

  4. Remove the fixing clip (A) and then disconnect the fuel feed tube (B).
    G14607703Courtesy of HYUNDAI MOTOR AMERICA

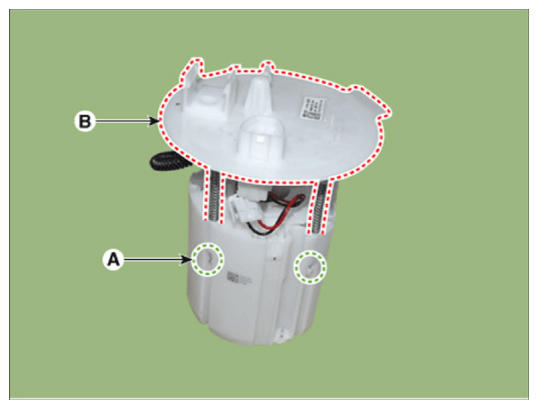

  5. Remove the fixing clip (A) and then remove the head assembly (B).
    G14607704Courtesy of HYUNDAI MOTOR AMERICA

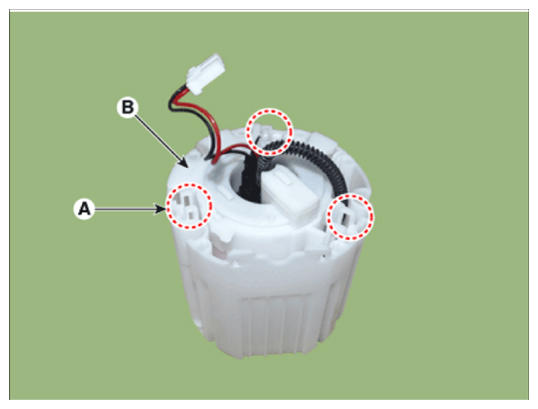

  6. Release the fixing hook (A) and then remove the reservoir-cup (B).
    G14607705Courtesy of HYUNDAI MOTOR AMERICA

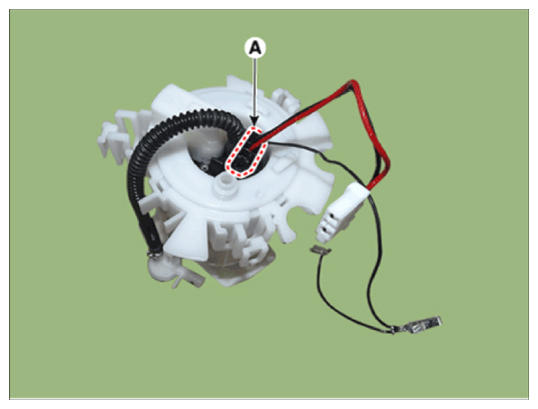

  7. Disconnect the fuel pump motor connector (A).
    G14607706Courtesy of HYUNDAI MOTOR AMERICA

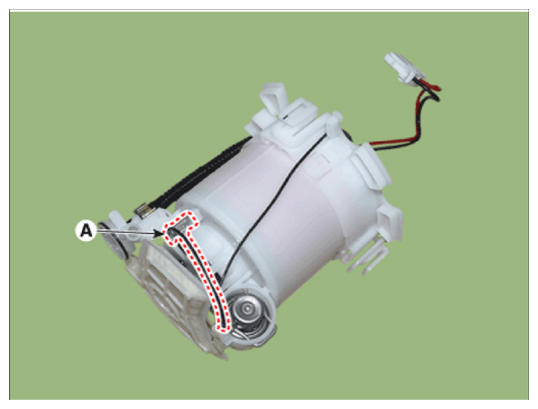

  8. Disconnect the ground cable (A).
    G14607707Courtesy of HYUNDAI MOTOR AMERICA

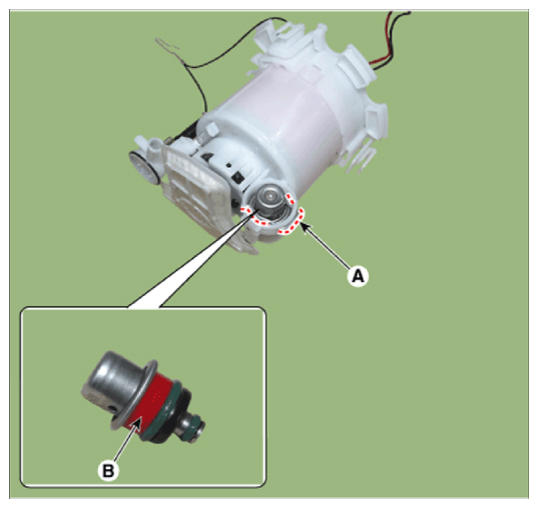

  9. Remove the fixing clip (A) and then disconnect the fuel pressure regulator (B).
    G14607708Courtesy of HYUNDAI MOTOR AMERICA
