Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery (-) terminal.
  2. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

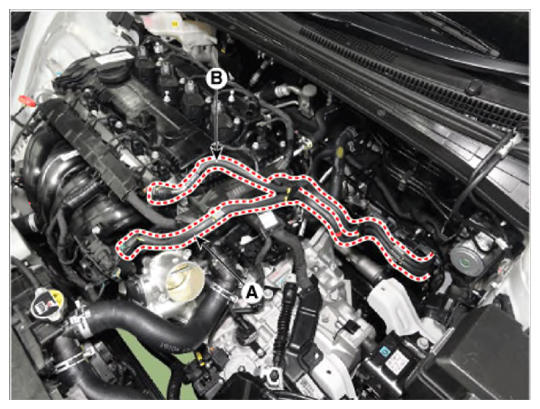

  3. Disconnect the vapor tube quick-connector (A) which is connected from the PCSV.
  4. Disconnect the fuel feed tube quick-connector (B).
    G14607709Courtesy of HYUNDAI MOTOR AMERICA

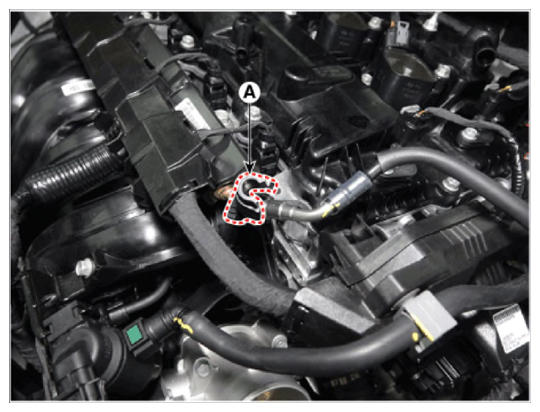

    NOTE:
    • Open the clamp cover (A) before disconnecting the quick connector (if the clip is applied).
      G14607710Courtesy of HYUNDAI MOTOR AMERICA

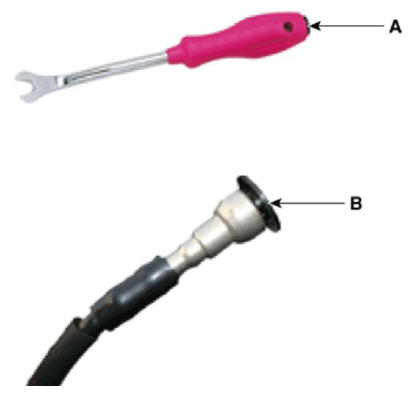

    CAUTION:
    • When removing the quick-connector by using a clip removing tool (A), be careful not to damage the plastic clip (B).
    • If the clip is damaged, fuel line leakage may occur due to poor connection.
      G14607711Courtesy of HYUNDAI MOTOR AMERICA

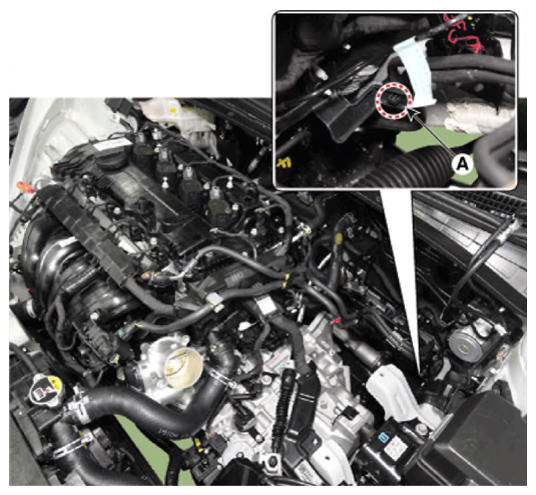

  5. Remove the fuel line clip (A) from engine room.
    G14607712Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the fuel tank.

    (Refer to Fuel Delivery System - "FUEL TANK ")

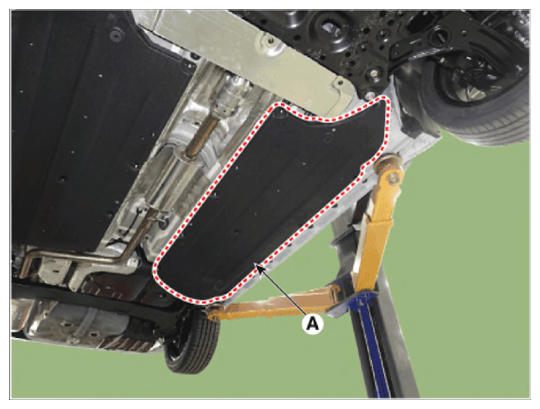

  7. Remove the floor under cover (A).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G14607713Courtesy of HYUNDAI MOTOR AMERICA

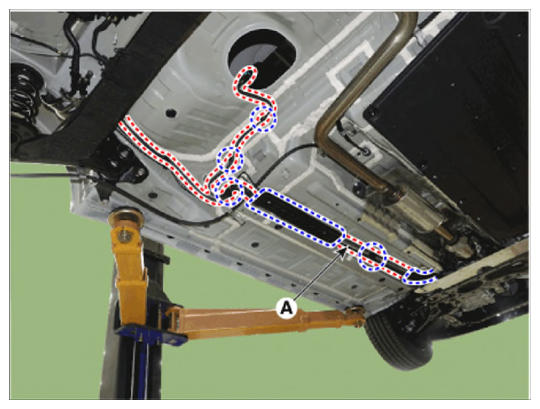

  8. Remove the fuel line and brake line fixing clips.
  9. Remove the fuel line (A).
    G14607714Courtesy of HYUNDAI MOTOR AMERICA
