Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Turn the ignition switch OFF and disconnect the battery (-) terminal.
Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

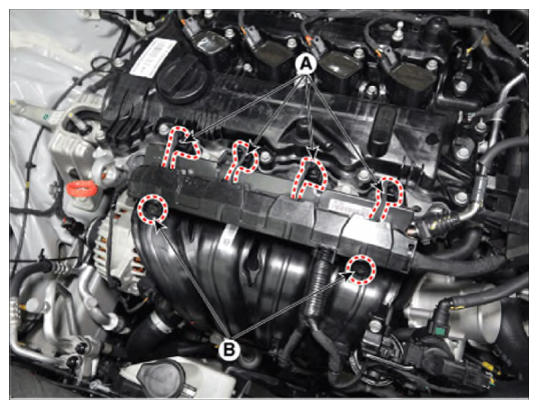

Disconnect the injector connectors (A) and then remove the wiring protector bolts (B).
Tightening Torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

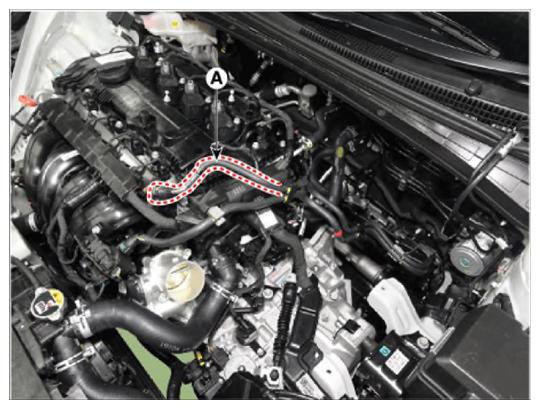

Disconnect the fuel feed tube quick-connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

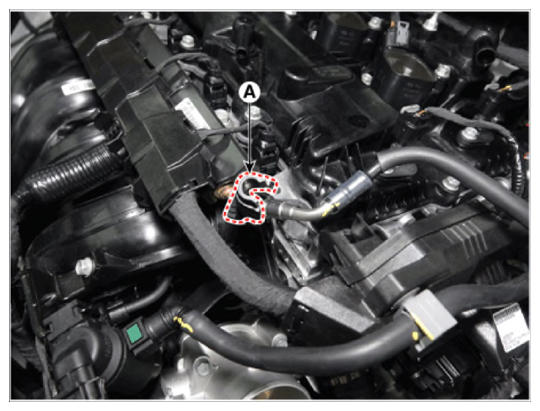

Open the clamp cover (A) before disconnecting the quick connector (if the clip is applied).

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

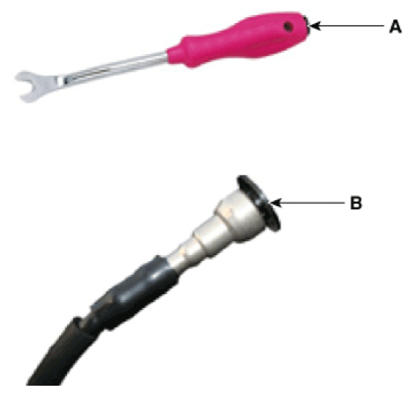

When removing the quick-connector by using a clip removing tool (A), be careful not to damage the plastic clip (B).

If the clip is damaged, fuel line leakage may occur due to poor connection.

Courtesy of HYUNDAI MOTOR AMERICA

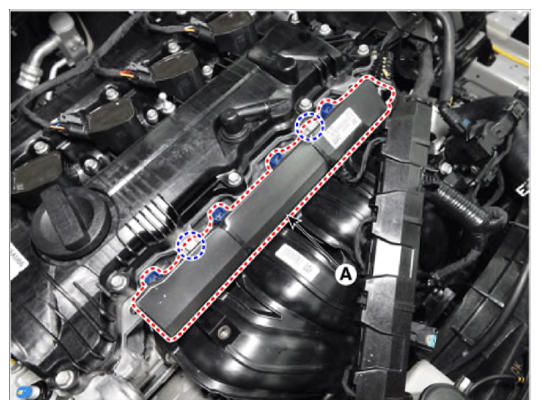

Remove the delivery pipe & injector assembly (A).
Tightening Torque:

7.8 - 11.8 N.m (1.9 - 2.4 kgf.m, 5.8 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

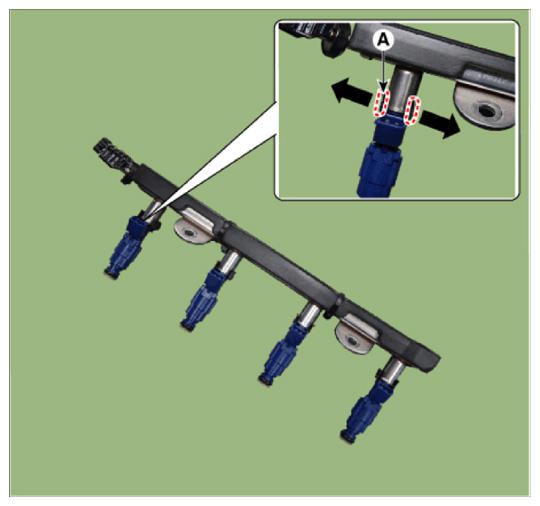

Release the fixing clip (A), and then separate the injector from the delivery pipe.

Courtesy of HYUNDAI MOTOR AMERICA
