Starter Solenoid Inspection

WARNING: This page is about a different variant/trim than selected.

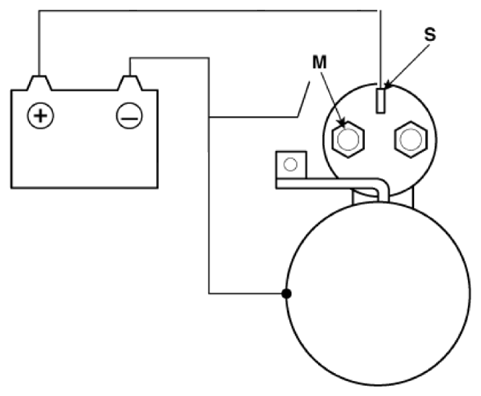

Connect the battery as shown in illustration. If the starter pinion pops out, it is working properly.

NOTE:

To avoid damaging the starter, do not leave the battery connected for more than 10 seconds.

Courtesy of HYUNDAI MOTOR AMERICA

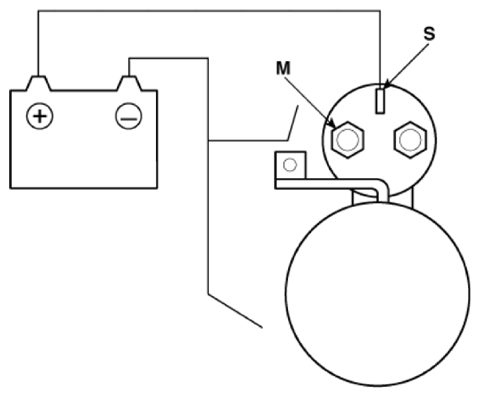

Disconnect the battery from the M terminal.

If the pinion does not retract, the hold-in coil is working properly.

NOTE:

To avoid damaging the starter, do not leave the battery connected for more than 10 seconds.

Courtesy of HYUNDAI MOTOR AMERICA

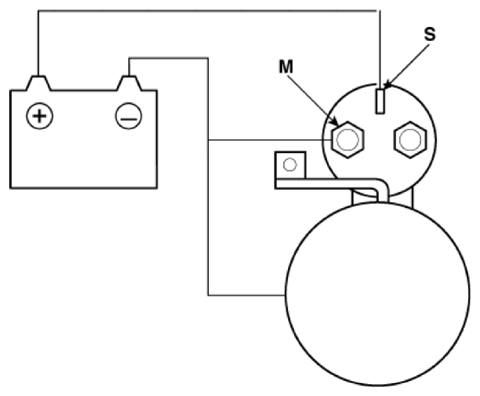

Disconnect the battery also from the body. If the pinion retracts immediately, it is working properly.

NOTE:

To avoid damaging the starter, do not leave the battery connected for more than 10 seconds.

Courtesy of HYUNDAI MOTOR AMERICA
