Section 20 (Automatic Transaxle System Diagnosis - 2.0L (Except HEV))
>>
DTC P0705-1C: Transmission Range Sensor Circuit Malfunction (PRNDL Input)
>>
Troubleshooting
>>
Diagnostic Flowchart
Diagnostic Flowchart
WARNING:
This page is about a different variant/trim than selected.

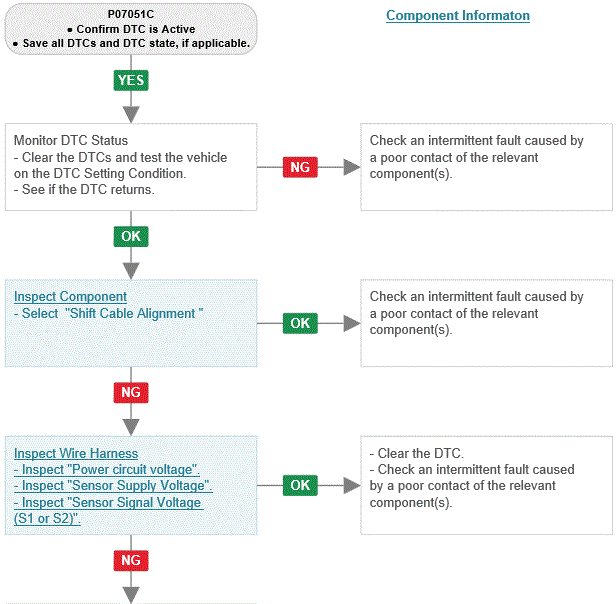

Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
