Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.

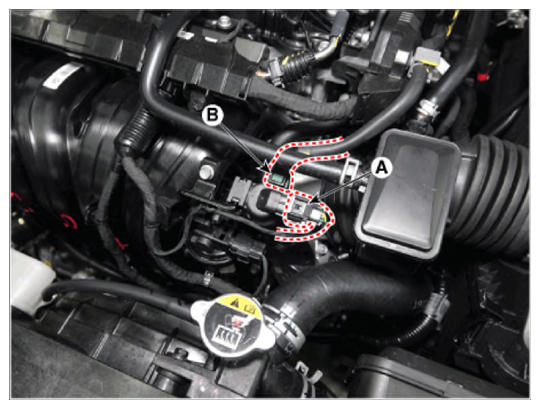

- Disconnect the purge control solenoid valve connector (A).
- Disconnect the vapor hose quick-connector (B) from the purge control solenoid valve.

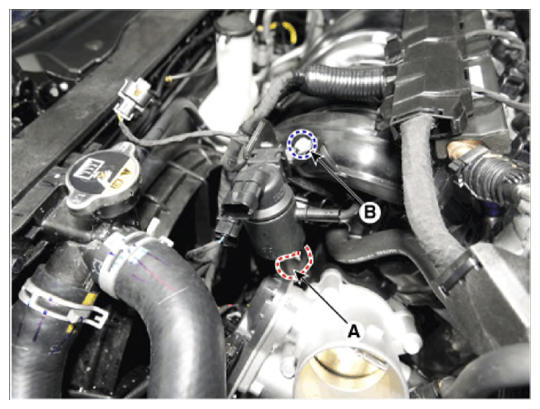

- Disconnect the vapor hose (A) from the purge control solenoid valve.
- Remove the purge control solenoid valve after loosening mounting bolt (B).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
