Engine Coolant Temperature Sensor (ECTS) #2

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the intake manifold.

    (Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

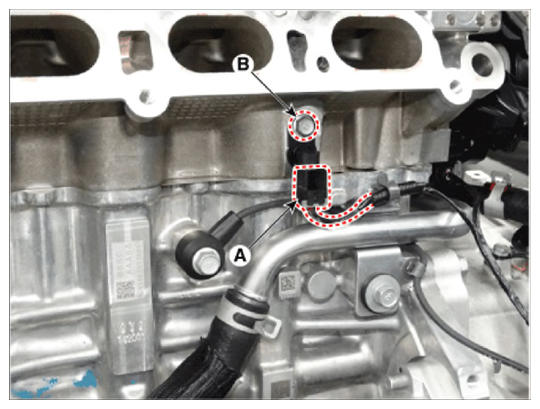

  3. Disconnect the engine coolant temperature sensor connector (A).
  4. Remove the engine coolant temperature sensor after loosening mounting bolt (B).
    G14607579Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Note that engine coolant may flow out when removing the sensor.
