Run out inspection
WARNING: This page is about a different variant/trim than selected.
- Jack up the vehicle.

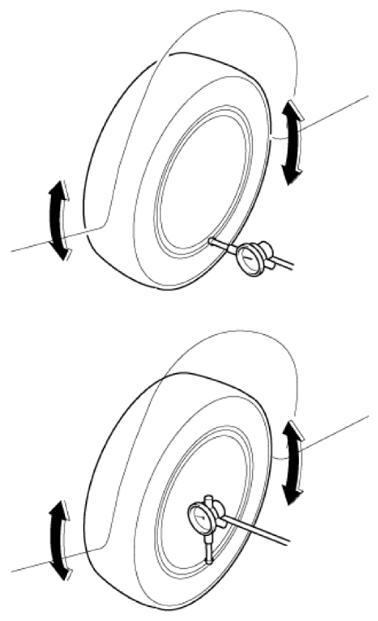

- Measure the wheel run-out by using a dial indicator as shown in illustration below.
| Limit |
Radial |
Axial |
| Run-out mm (in.) |
Steel wheel |
0.6 (0.0236) |
0.8 (0.0315) |
| Aluminum wheel |
0.3 (0.0118) |
0.3 (0.0118) |
 Courtesy of HYUNDAI MOTOR AMERICA
|
- If measured value run-out the standard value, replace the wheel.
