Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove valve core and deflate the tire.
  2. Remove the side of the tire bead area from the wheel using tire changing machine.

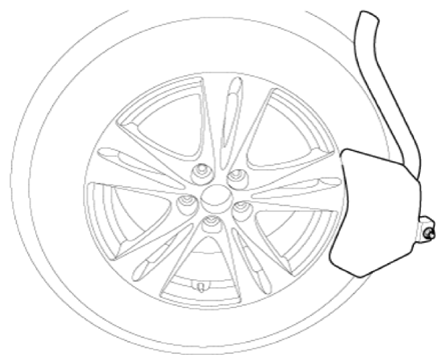

    G14607901Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Check that the bead breaker is sufficiently spaced from the TPMS sensor.
    • Beads are removed at 90, 180, and 270 degrees from the valve.
  3. Rotate the wheel clockwise.

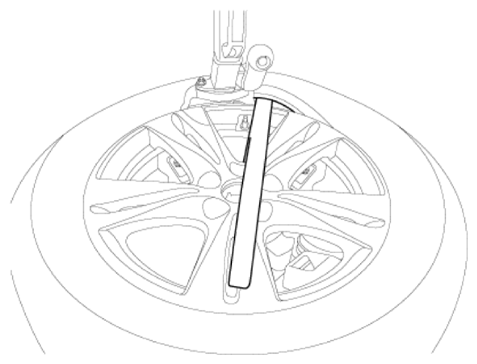

    G14607902Courtesy of HYUNDAI MOTOR AMERICA

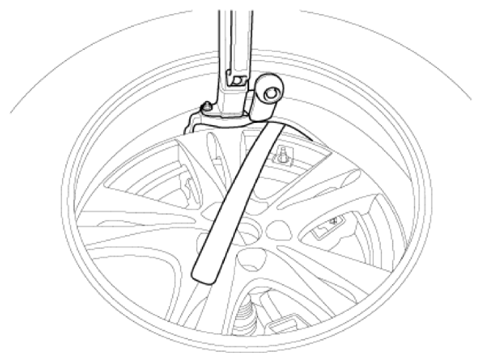

    G14607903Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Position the TPMS sensor at 12 o'clock from the head of the tire changer.
    • Do not impact the sensor when lifting the bead with a lever.
