Front Alignment: Caster
WARNING: This page is about a different variant/trim than selected.

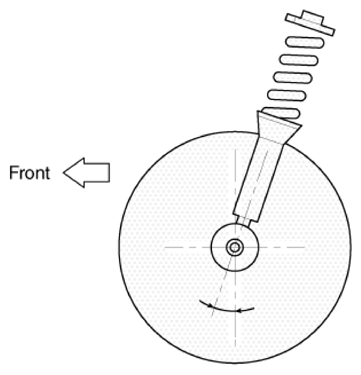

Caster is the tilting of the strut axis either forward or backward from vertical. A backward tilt is positive (+) and a forward tilt is negative (-).
Caster is pre-set at the factory and doesn't need to be adjusted. If the caster is not within the standard value, replace the bent or damaged parts.
Caster: 4.55° ± 0.5°
