Front Alignment: Camber
WARNING: This page is about a different variant/trim than selected.
Camber refers to the tilt of the center of the wheel.
Camber angle : -0.56° ± 0.5°

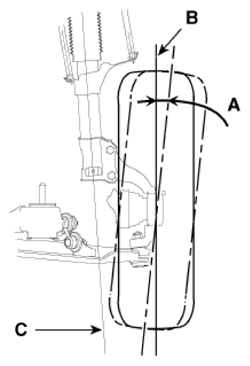

| Item | Description |
|---|---|
| A | Positive camber angle |
| B | True vertical |
| C | Strut centerline |
Information
- The worn loose or damaged parts of the front suspension assembly must be replaced prior to measuring front wheel alignment.
- Camber and caster are pre-set to the specified value at the factory and don't need to be adjusted.
- If the camber and caster are not within specifications, replace bent or damaged parts.
- The difference of left and right wheels about the camber and caster must be within the range of 0° ± 0.5°.
