Removal and installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the drive belt.
    1. Release the tension of the drive belt by turning the drive belt tensioner counter-clockwise.
    2. Remove the drive belt (A).

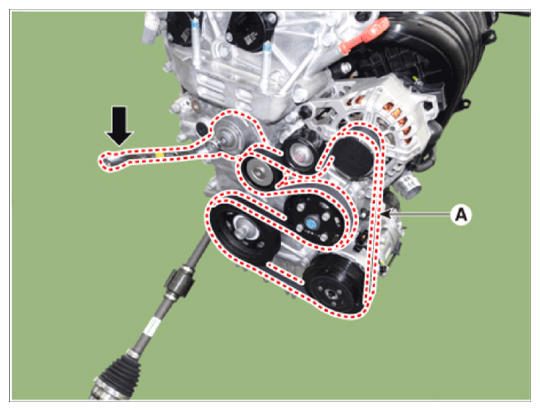

    Fig 1: Engine Drive Belt Routing Diagram
    G14607065Courtesy of HYUNDAI MOTOR AMERICA
  2. Install in the reverse order of removal.
