Removal and Installation
WARNING: This page is about a different variant/trim than selected.
- Remove the drive belt.
- (Refer to Drive Belt System - "DRIVE BELT ")

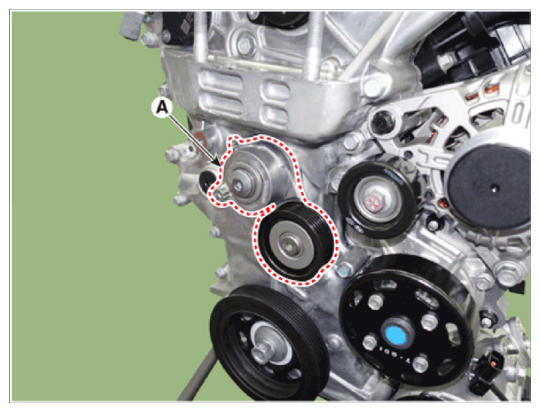

- Remove the drive belt tensioner (A).
Tightening torque:
39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb.ft)
- Install in the reverse order of removal.
