Removal and Installation: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative terminal from the battery.
  2. Remove the engine cover.

    (Refer to the Engine And Transaxle Assembly - "ENGINE COVER ")

  3. Remove the air cleaner.

    (Refer to the Intake And Exhaust System - "AIR CLEANER ")

  4. Remove the engine room under cover.

    (Refer to the Engine And Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

  5. Drain engine coolant by loosening the drain plug.

    (Refer to the Cooling System - "COOLANT ")

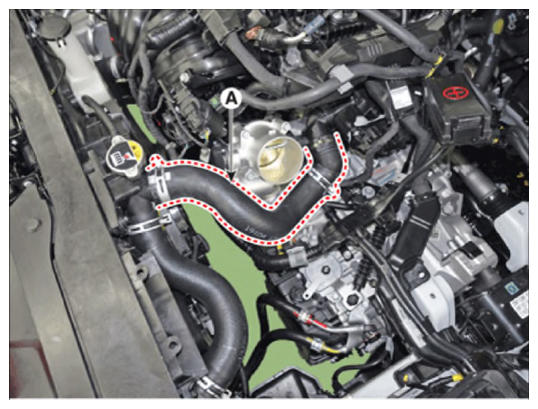

  6. Disconnect the radiator upper hose (A).
    G14607243Courtesy of HYUNDAI MOTOR AMERICA

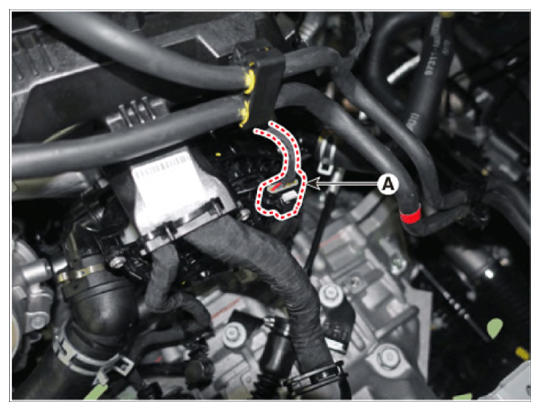

  7. Disconnect the ITM connector (A).
    G14607244Courtesy of HYUNDAI MOTOR AMERICA

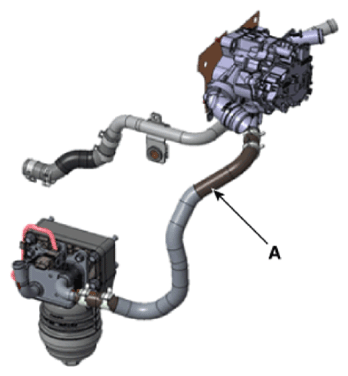

  8. Disconnect the engine oil cooler hose (A).
    G14607245Courtesy of HYUNDAI MOTOR AMERICA

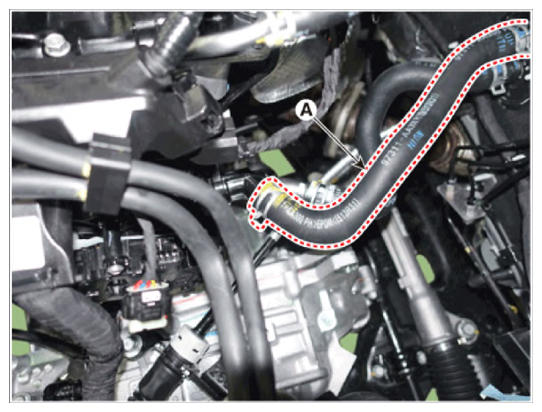

  9. Disconnect the heater hose (A).
    G14607246Courtesy of HYUNDAI MOTOR AMERICA

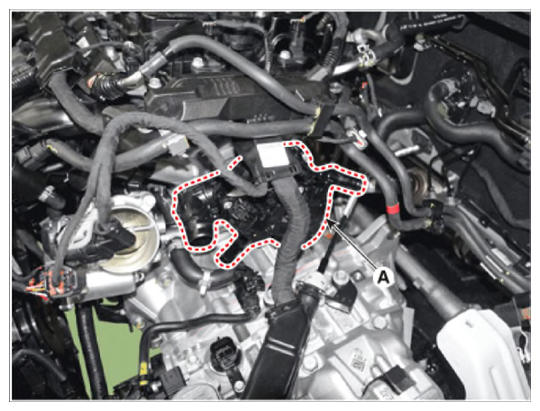

  10. Remove the ITM (A).
    G14607247Courtesy of HYUNDAI MOTOR AMERICA
  11. Install in the reverse order of removal.
    NOTE:
    • Always use the new ITM rubber gasket.
  12. Fill the radiator with coolant.

    (Refer to Cooling System - "COOLANT ")

    NOTE:
    • When changing the coolant and draining air, be sure to follow the filling instructions of the Integrated Thermal Management Module (ITM).
  13. Start engine and check for leaks.
