Removal and Installation
WARNING: This page is about a different variant/trim than selected.

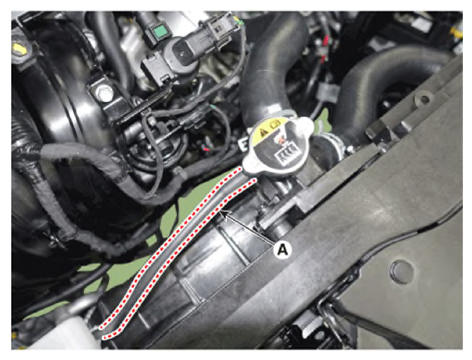

- Disconnect the over flow hose (A).

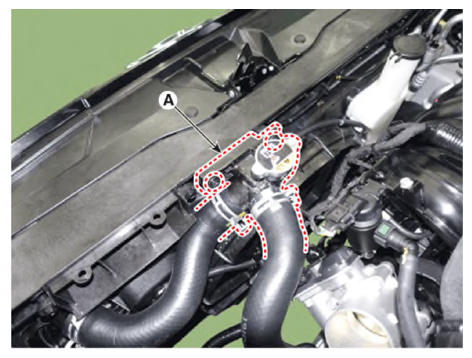

- Remove the filler neck assembly (A).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

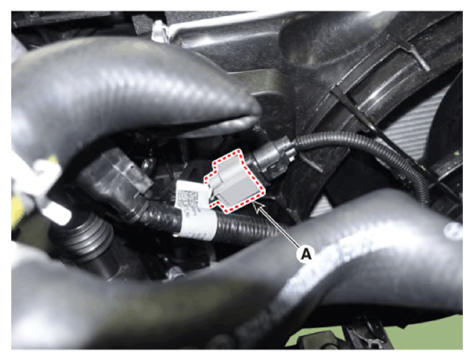

- Disconnect the cooling fan controller connector (A).

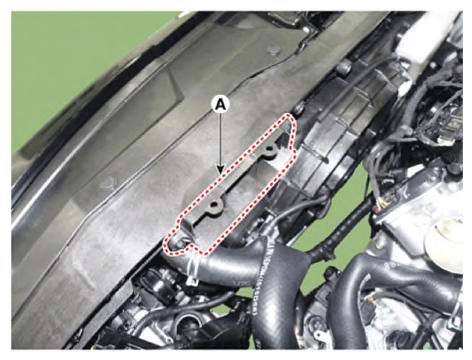

- Remove the intake shield (A).
Tightening torque:
7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

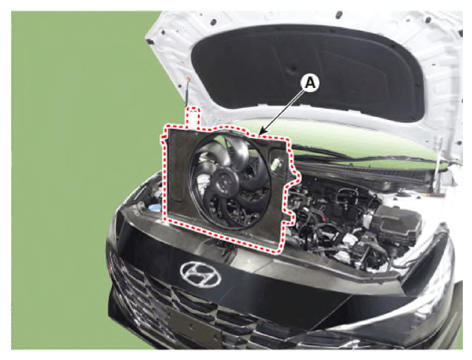

- Remove the cooling fan (A) form radiator.
- Install in the reverse order of removal.
