Repair Procedures: Disassembly
WARNING: This page is about a different variant/trim than selected.

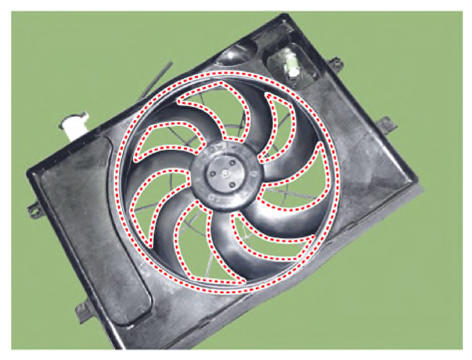

- Remove the cooling fan (A) from the cooling fan assembly.
Tightening torque:
2.8 - 3.3 N.m (0.28 - 0.33 kgf.m, 2.0 - 2.4 lb-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|

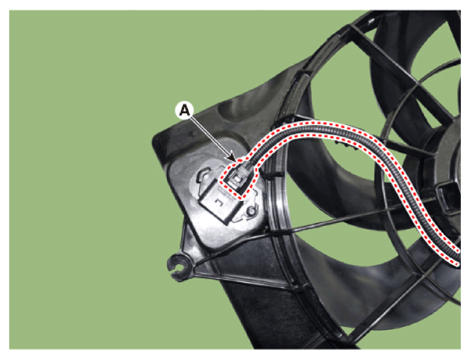

- Disconnect the fan motor connector (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Remove the fan motor from cooling fan shroud.
