Front Muffler

  1. Disconnect the battery negative terminal.

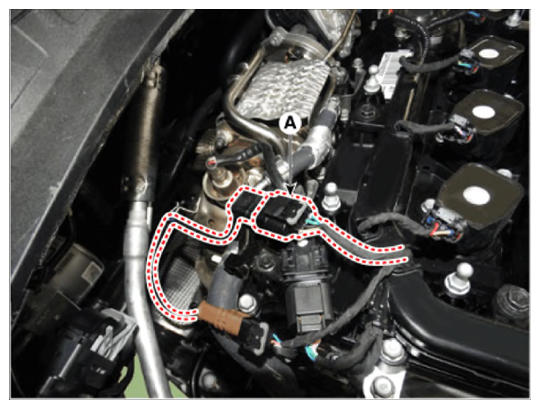

  2. Disconnect the oxygen sensor connector (A).
    G14596158Courtesy of HYUNDAI MOTOR AMERICA

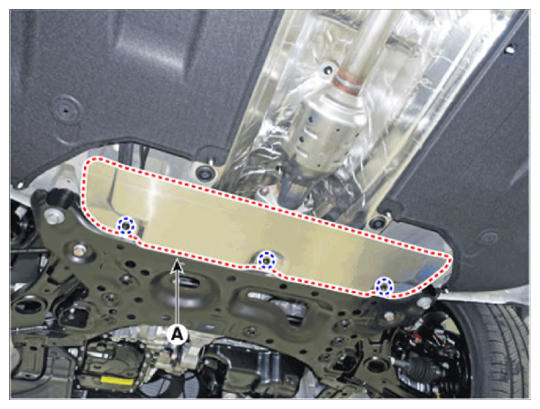

  3. Remove the heat protector (A).

    Tightening torque:  9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G14596159Courtesy of HYUNDAI MOTOR AMERICA

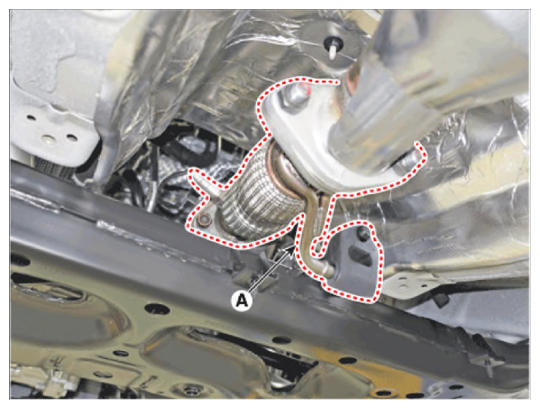

  4. Remove the front muffler (A) after disconnecting the hanger.

    Tightening torque:  39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

    G14596160Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
    NOTE:
    • When installing, replace with new gaskets.
