Rear Muffler

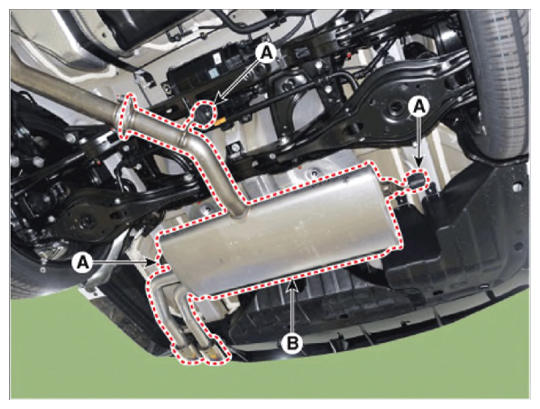

  1. Remove the rear muffler.
    1. Disconnect the hanger (A).
    2. Remove the rear muffler (B).

      Tightening torque:

      39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

    G14596162Courtesy of HYUNDAI MOTOR AMERICA
  2. Install in the reverse order of removal.
    NOTE:
    • When installing, replace with new gaskets.
