Home >> Hyundai >> 2021 >> Elantra N Line, Standard Trans >> Repair and Diagnosis >> Engine Mechanical >> Blowers, Superchargers & Turbochargers >> Intake And Exhaust System - 1.6L (Except HEV) >> Muffler And Catalytic Converter >> Components & Components Location >> Components

Components & Components Location: Components

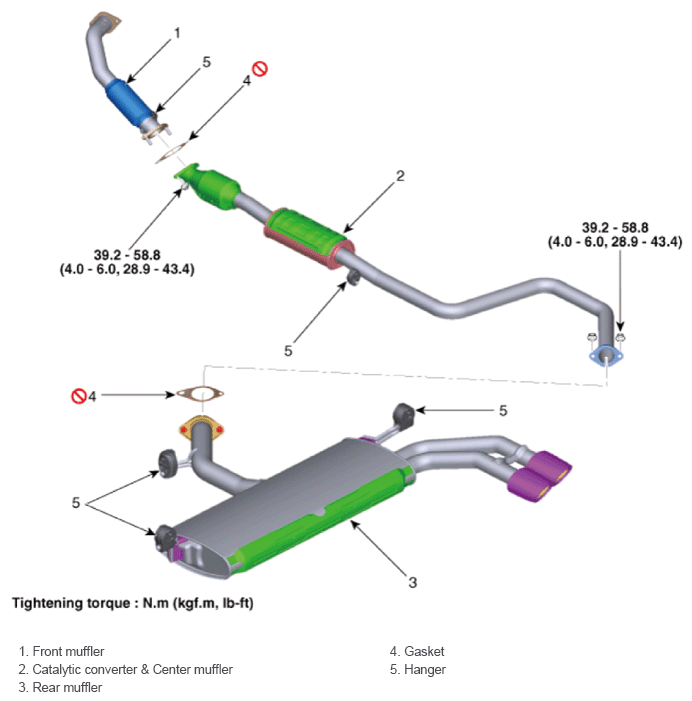

Fig 1: Muffler And Catalytic Converter Components Location With Torque Specification

G14596157

Courtesy of HYUNDAI MOTOR AMERICA
