Removal and Installation: Notes

Disconnect the battery negative terminal.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

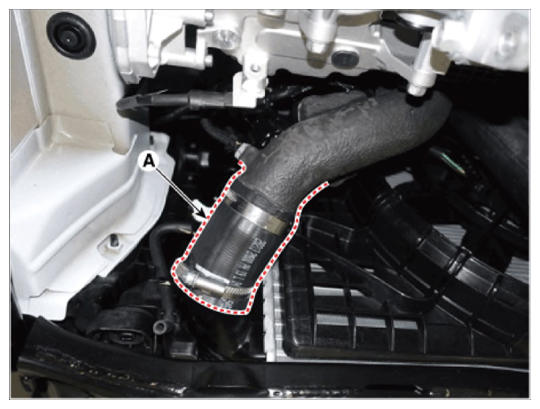

Disconnect the intercooler inlet hose (A).
Tightening torque:

Clamp bolt: 4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Insert the hose until it reaches the end of stopper.

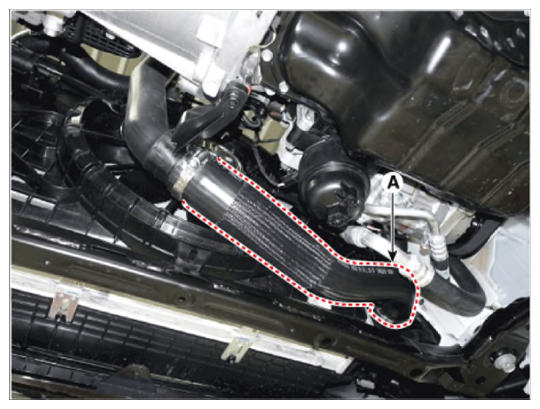

Disconnect the intercooler outlet hose (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the front bumper cover.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

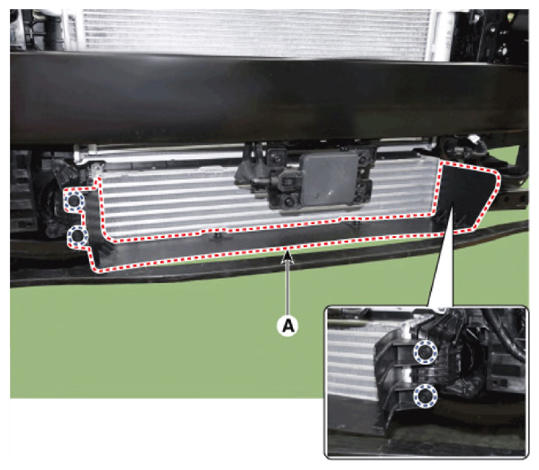

Remove the intercooler air guard (A).

Courtesy of HYUNDAI MOTOR AMERICA

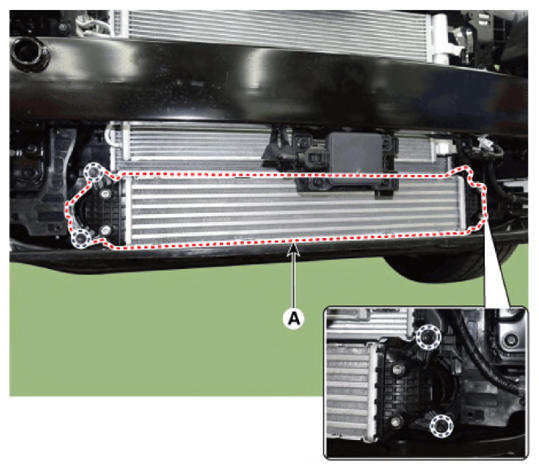

Remove the intercooler (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
