Intercooler inlet pipe
- Disconnect the battery negative terminal.
- Remove the air duct and air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
- Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
- Remove the intercooler inlet hose and pipe.

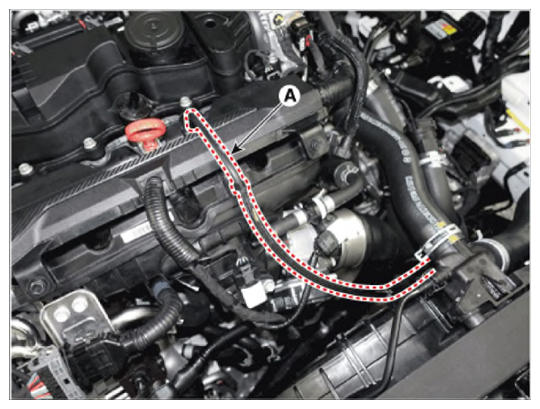

- Disconnect the RCV vacuum hose (A).

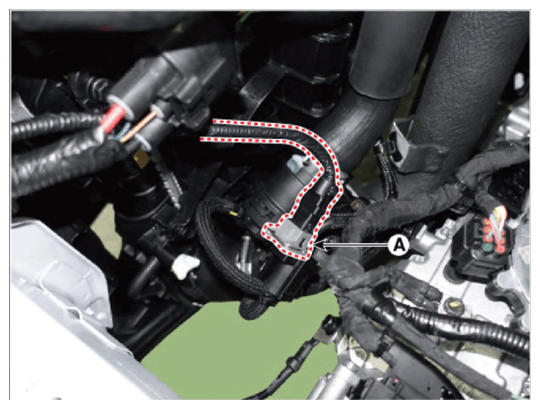

- Disconnect the RCV valve connector (A).

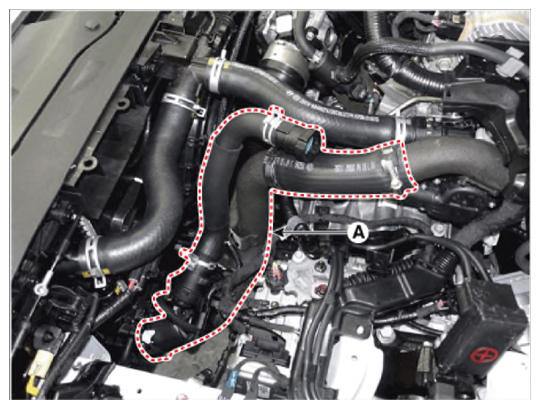

- Remove the intercooler inlet hose and pipe (A).
Tightening torque:
Clamp bolt: 4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb-ft)
NOTE:- Insert the hose until it reaches the end of stopper.
- When installing the intercooler inlet hose, Match the alignment marks.
- Disconnect the RCV vacuum hose (A).

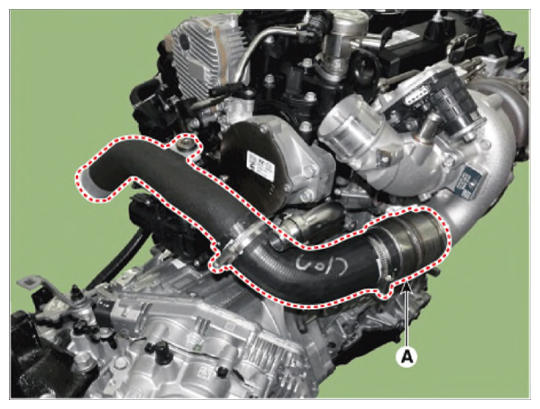

- Remove the intercooler hose & pipe (A).
Tightening torque:
Mounting bolt: 18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)
Clamp bolt: 4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb-ft)
NOTE:- Insert the hose until it reaches the end of stopper.
- When installing the intercooler inlet hose, Match the alignment marks.
- Install in the reverse order of removal.
